- place of origin:Beijing, China
- brand name:TAZLASER
- model number:TR-C
- q-switch:NO
- laser type:Laser
- style:PORTABLE
- type:Desktop
- feature:treatment fiber laser spine disc, Percutaneous laser disc decompression lumbar disc
- application:For Commercial
- after-sales service provided:Free spare parts, Online support, Video technical support
- warranty:1 Year
- Brand Name:TAZLASER
- Product name:TR-C
- Place of Origin:Beijing, China
- Laser Type:laser
- Wavelength:980nm 1470nm
- packing size:41*33*49cm
- weigth:18kg
- power:30W+17w
- Certification:CE/ISO9001/ISO13485
- Function:treatment fiber laser spine disc

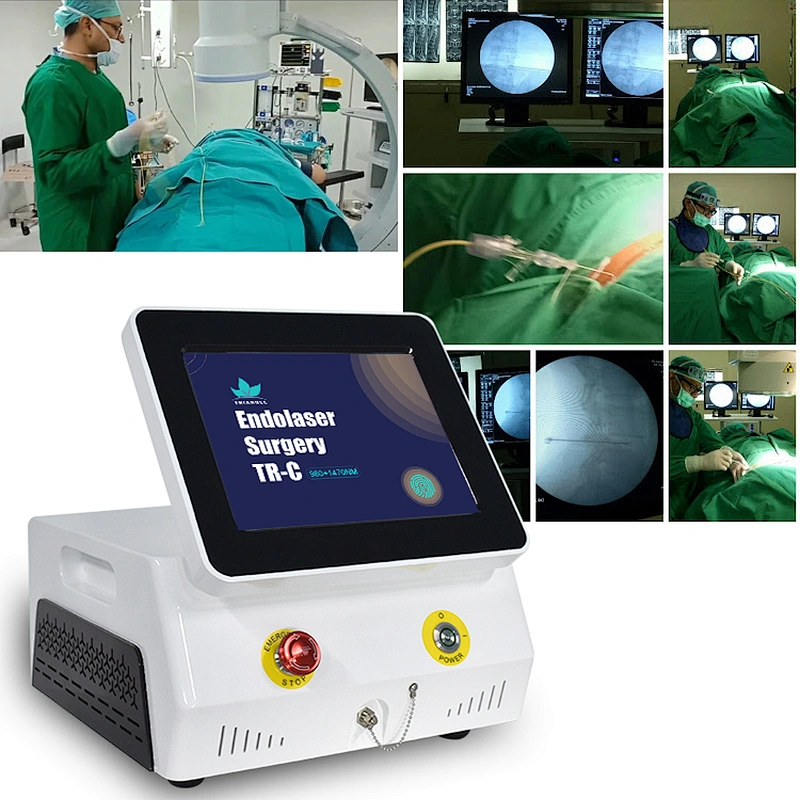

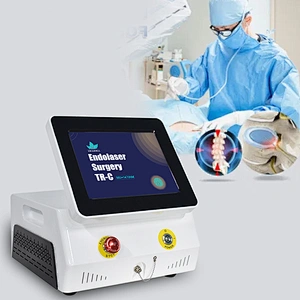

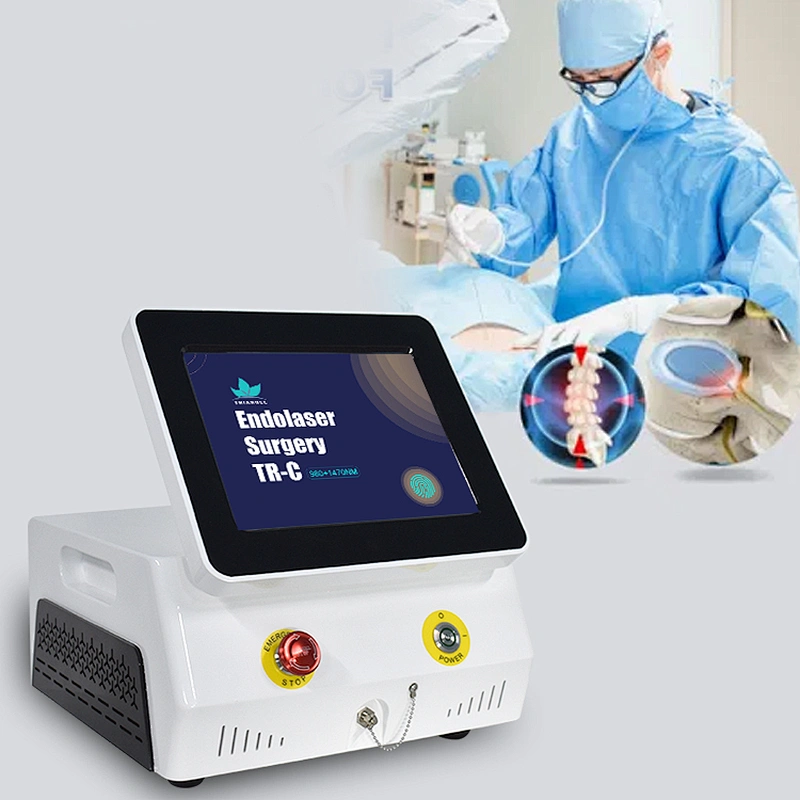

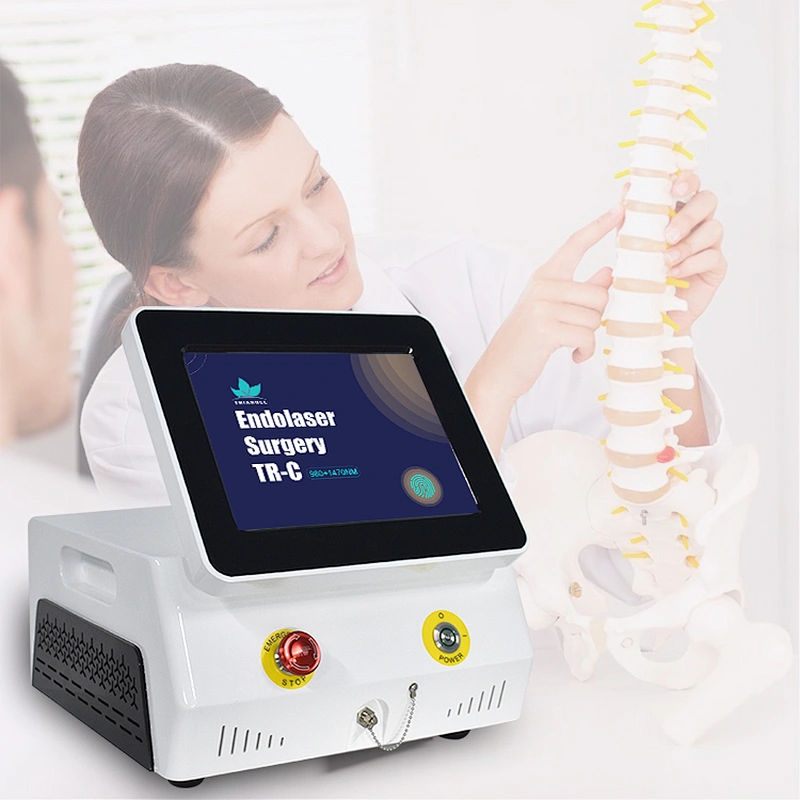

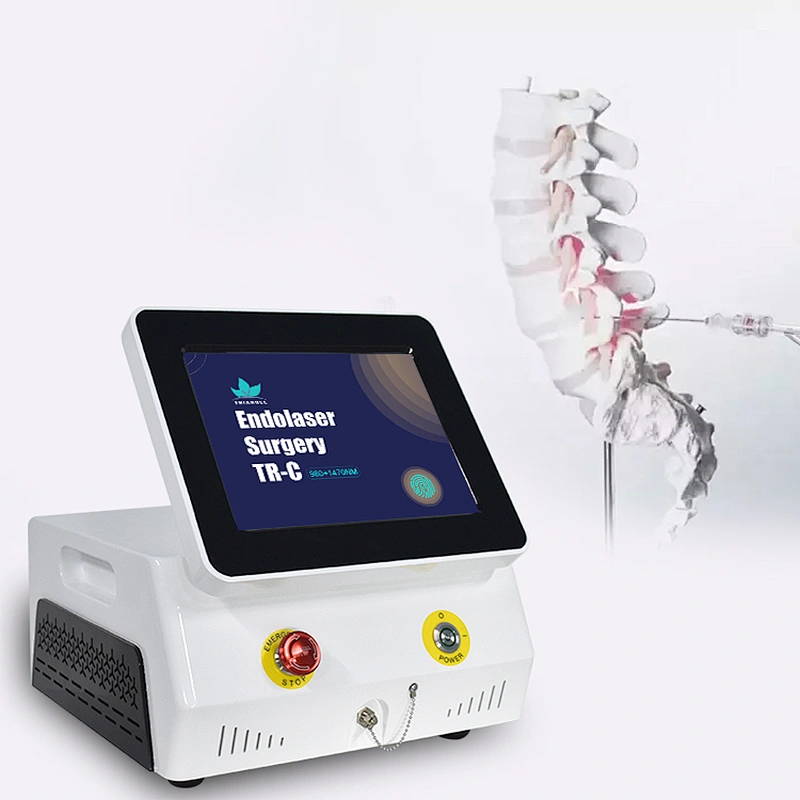

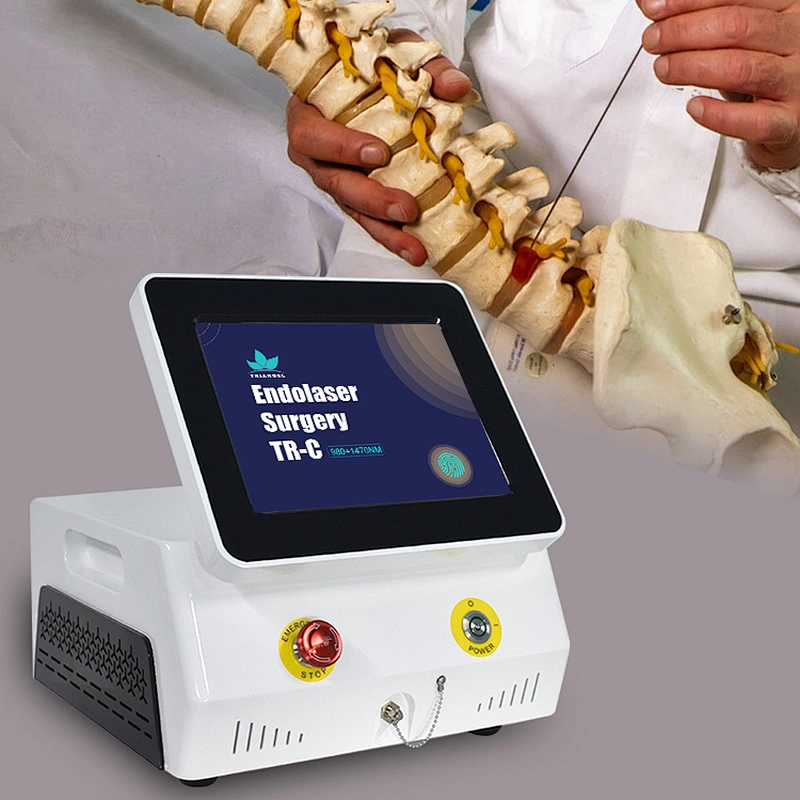

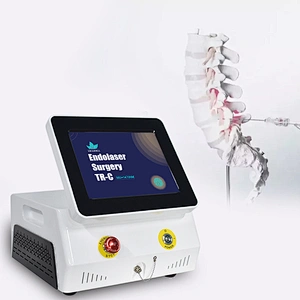

Professional Medical Instruments Diode Laser 980nm 1470nm Treatment Disc Herniation Pldd Laser Surgery Equipment
Products Description
What's the PLDD?

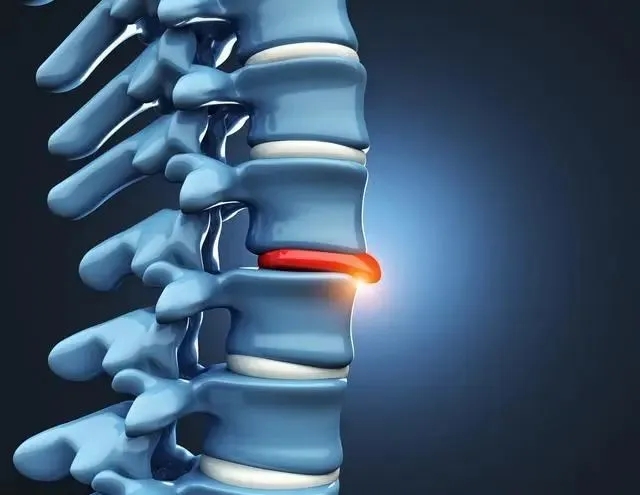

Percutaneous laser disc decompression (PLDD) is a procedure in which herniated intervertebral discs are treated by reduction of intradiscal pressure through laser energy. This is introduced by a needle inserted into the nucleus pulposus under local anesthesia and fluoroscopic monitoring. The small volume of nucleus vaporized results in a sharp fall of intradiscal pressure, with consequent migration of the herniation away from the nerve root. It is firstly developed by Dr. Daniel S.J. Choy in 1986. PLDDhas
proven to be safe and effective. It is minimally invasive, is performed in an outpatient setting, requires no general anesthesia, results in no scarring or spinal instability, reduces rehabilitation time, is repeatable, and does not preclude open surgery should that become necessary. It is an ideal choice for patients with poor results in non-surgical treatment.
proven to be safe and effective. It is minimally invasive, is performed in an outpatient setting, requires no general anesthesia, results in no scarring or spinal instability, reduces rehabilitation time, is repeatable, and does not preclude open surgery should that become necessary. It is an ideal choice for patients with poor results in non-surgical treatment.

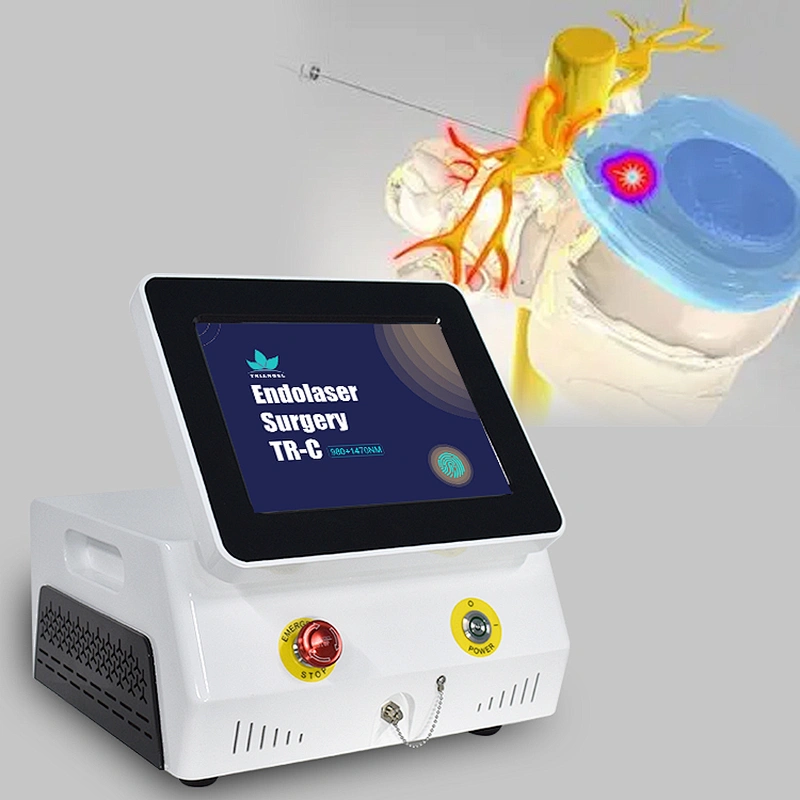

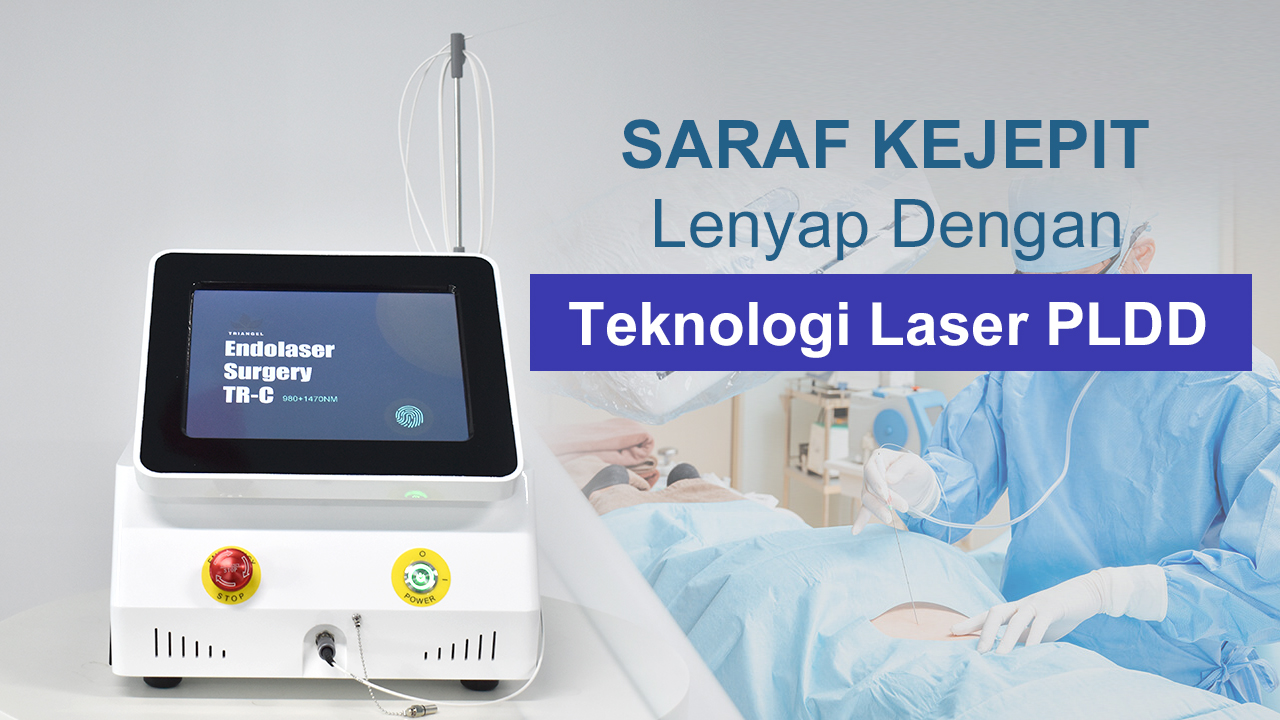

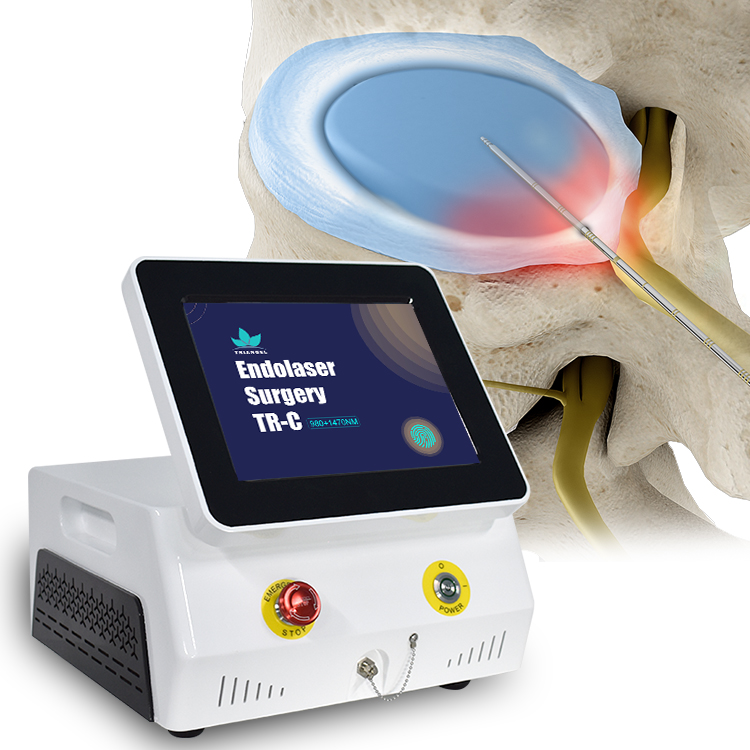

An innovative approach - using TRIANGEL TR-C 980nm 1470nm - is to treat the bulge itself rather than to vaporize the Nucleus Pulposus.The focused 980nm 1470nm wavelength results in a confined effect and an energy efficient procedure.
WHO SHOULD CONSIDER PLDD?
The PLDD procedure is specifically designed and developed for the cervical and lumbar indications, including: ●Severe leg, arm,neck or lower back pain.
●Pain that has not responded to six weeks of conservative treatments- rest, meds or physical therapy.
●Herniated lumbar discs confirmed by x-ray studies that may include one or more of the following: Magnetic Resonance Imaging (MRI), CAT Scanning, Myelography, Discography.
●Pain that has not responded to six weeks of conservative treatments- rest, meds or physical therapy.
●Herniated lumbar discs confirmed by x-ray studies that may include one or more of the following: Magnetic Resonance Imaging (MRI), CAT Scanning, Myelography, Discography.
Product Advantage
Advantages of PLDD
1.Convenience: Short surgery time (15-30 minutes). Multiple disc lesions can be treated simultaneously.
2.Minimally Invasive and Painless: Local anesthesia only 1-millimeter incision, no scars. Painless procedure.
3.Safe and Reliable: Fast recovery, discharge in 3 days. No impact on spinal stability or bone tissue.
4.Cost-Effective: Rapid recovery. Lower cost, less than half of traditional surgery.
3.Safe and Reliable: Fast recovery, discharge in 3 days. No impact on spinal stability or bone tissue.
4.Cost-Effective: Rapid recovery. Lower cost, less than half of traditional surgery.
Applications
— Intra-discal application on cervical spine, thoracic spine, lumbar spine
— Medial branch neurotomy for facet joints
— Lateral branch neurotomy for sacroiliac joints
— Lateral branch neurotomy for sacroiliac joints
Indications
— Contained disc herniations with consecutive foraminal stenosis — Discogenic spinal stenosis
— Discogenic pain syndroms
—Chronic facet and sacroiliac joint syndrom
— Further surgical applications, e.g. tennis elbow, calcaneal spur
—Chronic facet and sacroiliac joint syndrom
— Further surgical applications, e.g. tennis elbow, calcaneal spur
Technical Parameters
Laser type | Diode Laser 980nm+1470nm (GaAlAs) | ||||||
Output power | 47W | ||||||
Working mode | CW ,Pluse | ||||||
Pulse Width | 0.01-1s | ||||||
Delay | 0.01-1s | ||||||
Indication light | 650nm,intensity control | ||||||
Fiber interface | SMA905 international standard interface | ||||||
Weight | 14kg | ||||||
Fiber | 400um/600/800um (bare fiber) | ||||||
Packing dimension | 41*33*49cm | ||||||
Why Choose US
Recommend Products
Company Profile
TRIANGEL RSD LIMITED,is one of the specialized manufactures focused on the Aesthetics &Medical laser equipment in China, established in March 2010. We have our own repair companies & training centers in several countries,like
Portugal,Russia,Australia,South Africa... could offer the technical support and clinical training in the fast and efficient way.
TRIANGEL got different certificates for clients from all over the world. Medical CE,ISO13485,RoHS;We also take part in exhibitions every year,Cosmoprof Asia,DUBAI DERMA, INTERCHARM(Moscow),Expocosmetica(Oporto),AMSCA(South Africa)...
Portugal,Russia,Australia,South Africa... could offer the technical support and clinical training in the fast and efficient way.
TRIANGEL got different certificates for clients from all over the world. Medical CE,ISO13485,RoHS;We also take part in exhibitions every year,Cosmoprof Asia,DUBAI DERMA, INTERCHARM(Moscow),Expocosmetica(Oporto),AMSCA(South Africa)...
TRIANGEL,hope to be your Responsible,Sincere and Dependable partner in China!
Customer Feedback
FAQ
1: WHAT IS PLDD?
The pldd (percutaneous laser disc decompression) is a not-surgical technique but truly minimal invasive interventional procedure for the treatment of a 70% of the disc hernia and 90% of the disc protrusions (these are small disc hernia that sometimes are very painful and do not respond to the most conservative therapies as pain killers, cortisonic and physical therapies and so on).
2: HOW DOES THE PLDD WORK?
It uses local anesthesia, a tiny needle and a laser optical fiber. It is practicated into the operating room with the patient in
the lateral position or prone (for lumbar disk) or supin (for cervical). Firstly the local anesthesia in an exact point of the
back (if lumbar) or of the neck (if cervical) is done, then a tiny needle is inserted through the skin and muscles and this, under radiological control, reaches the center of the disc (called nucleus pulposus). At this point the laser optical fiber is inserted inside the tiny needle and i start to delivery the laser energy (heat) that vaporizes a very small amount of the nucleus pulposus.This determines a decrease of 50-60% of the intra discal pressure and therefore also the pressure that disc hernia or protrusion exercises on the nerve root (cause of pain).
the lateral position or prone (for lumbar disk) or supin (for cervical). Firstly the local anesthesia in an exact point of the
back (if lumbar) or of the neck (if cervical) is done, then a tiny needle is inserted through the skin and muscles and this, under radiological control, reaches the center of the disc (called nucleus pulposus). At this point the laser optical fiber is inserted inside the tiny needle and i start to delivery the laser energy (heat) that vaporizes a very small amount of the nucleus pulposus.This determines a decrease of 50-60% of the intra discal pressure and therefore also the pressure that disc hernia or protrusion exercises on the nerve root (cause of pain).
3: HOW MUCH TIME TAKES THE PLDD? IS A SINGLE SESSION ?
Every pldd (i can also treat 2 disks at the same time) takes from 30 to 45 minutes and there is only one session .
4 : PATIENT FEEL PAIN DURING PLDD?
If made in experienced hands the pain during the pldd is minimum and only for few seconds: it comes at the time when the needle cross the anulus fibrous of the disc (the most external part of the disc). The patient, who is always awake and collaborating, must be adviced at that time to avoid rapid and unexpected movement of the body which he / she could make in reaction at the same short pain. Many patients do not feel pain during all the procedure.
5: DOES PLDD HAVE IMMEDIATE RESULTS?
In 30% of cases the patient feels immediate improvement of pain that then improves further and gradually in the following 4 to 6 weeks. In 70% of cases often there are"up and down pain"with"old"and"new"pain in the following 4 – 6 weeks and a serious and reliable judgment on the success of pldd is given only after 6 weeks. When the success is positive, the improvements can continue up to 11 months after the procedure.
