1. Germany laser generator with more than 3 years lifetime ,max.60w output laser energy;
2. Curative effect: operation under direct vision, the main branch can closed of tortuous vein clumps
3. Patients with mild disease can be treated in the outpatient service.
4. Postoperative secondary infection, less pain, quick recovery.
5. Surgical operation is simple, treatment time is greatly shortened, reduce patient's much pain
6. Beautiful appearance, almost no scar after surgery.
7. Minimally invasive, less bleeding.
- place of origin:Beijing, China
- brand name:TAZLASER
- model number:Mini - 60
- q-switch:NO
- laser type:LASER
- style:PORTABLE
- type:laser
- feature:Blood Vessels Removal
- application:For Commercial
- after-sales service provided:Free spare parts, Online support, Video technical support
- warranty:1 Year
- Delay:0.01-1s
- Working Mode:CW , Repeat pulse, Single pulse
- Laser wavelength:980nm
- fiber:Radical fibre 400um, 600um
- Weight:6.4 kg
- Energy:60w
- Screen:Touch
- Warranty:1 year
- Function:Varicose Vein Ablation
- OEM&ODM:Custom-made

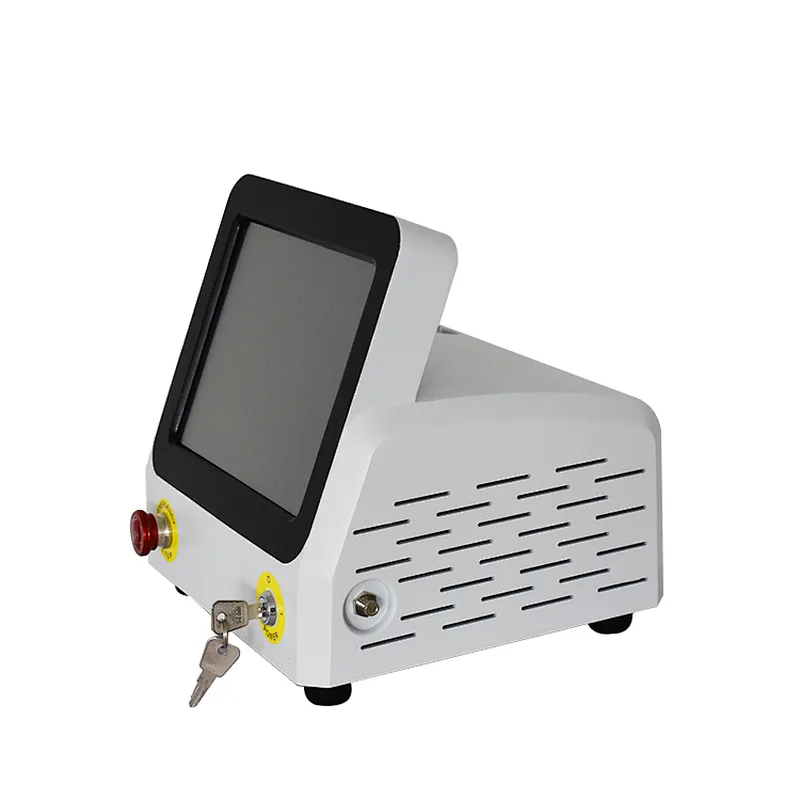

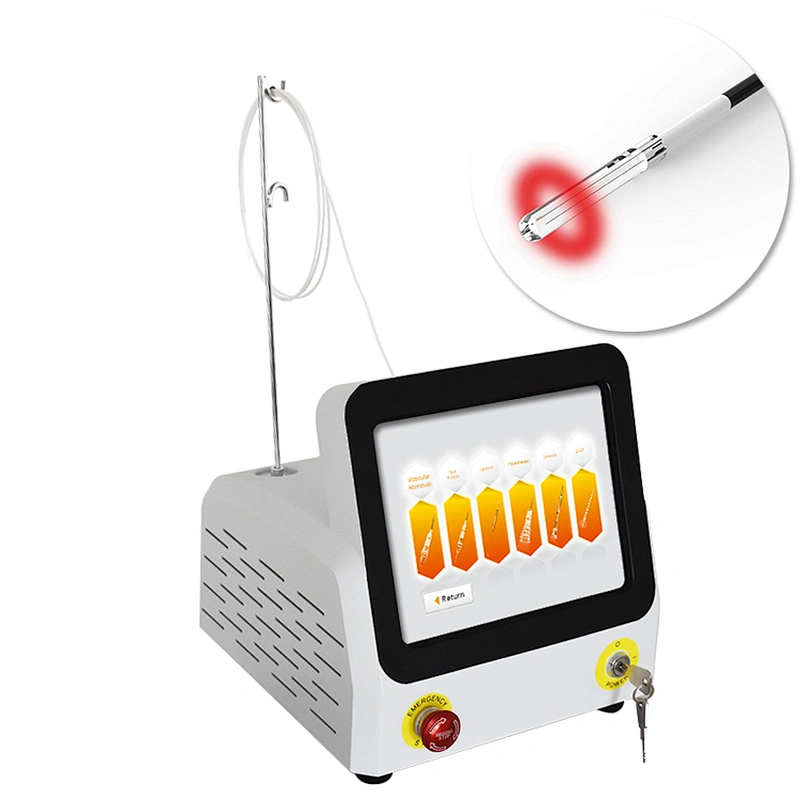

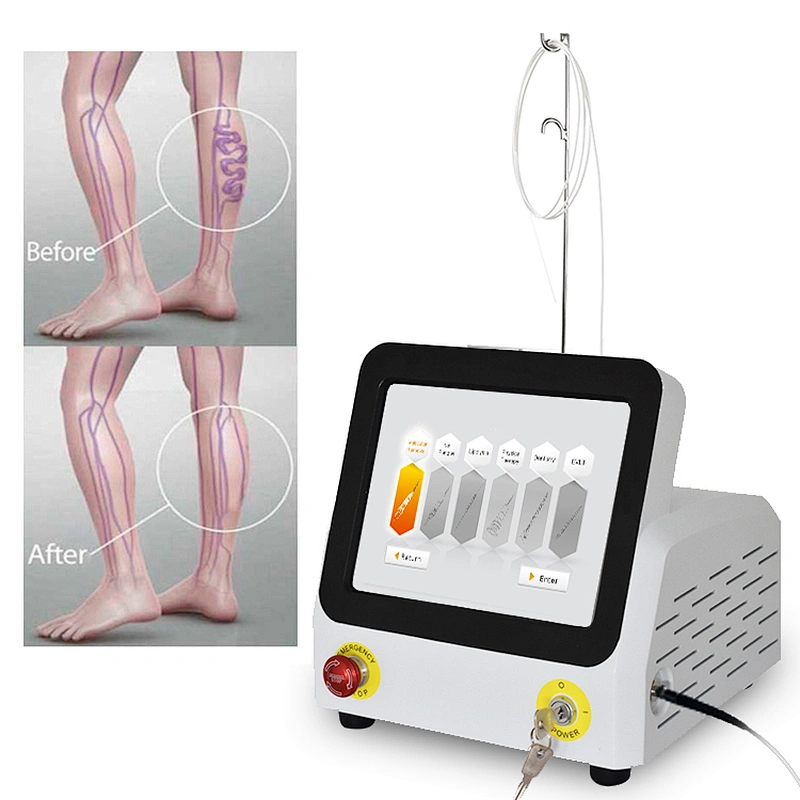

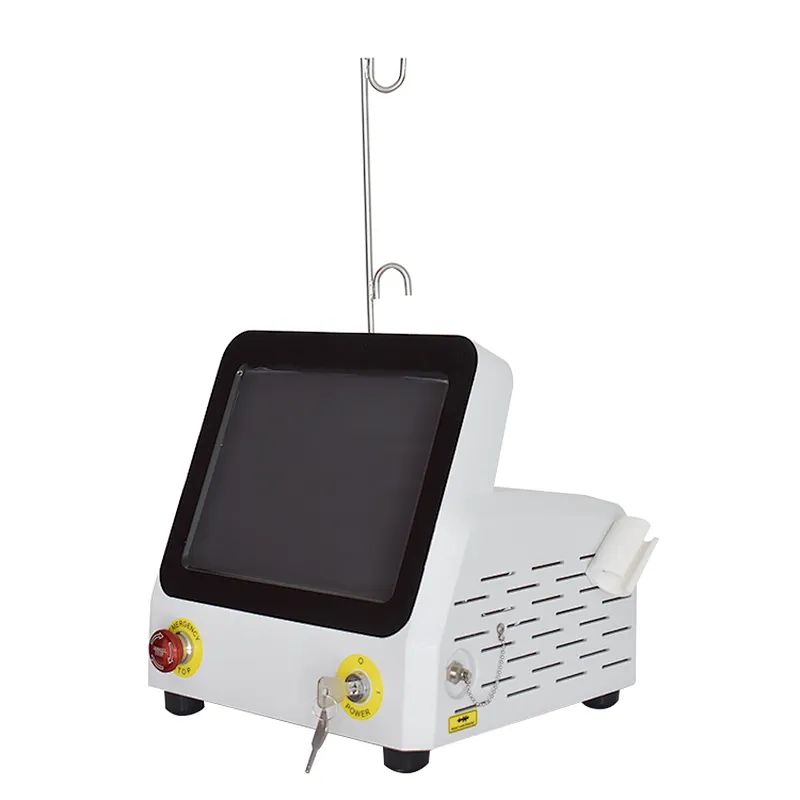

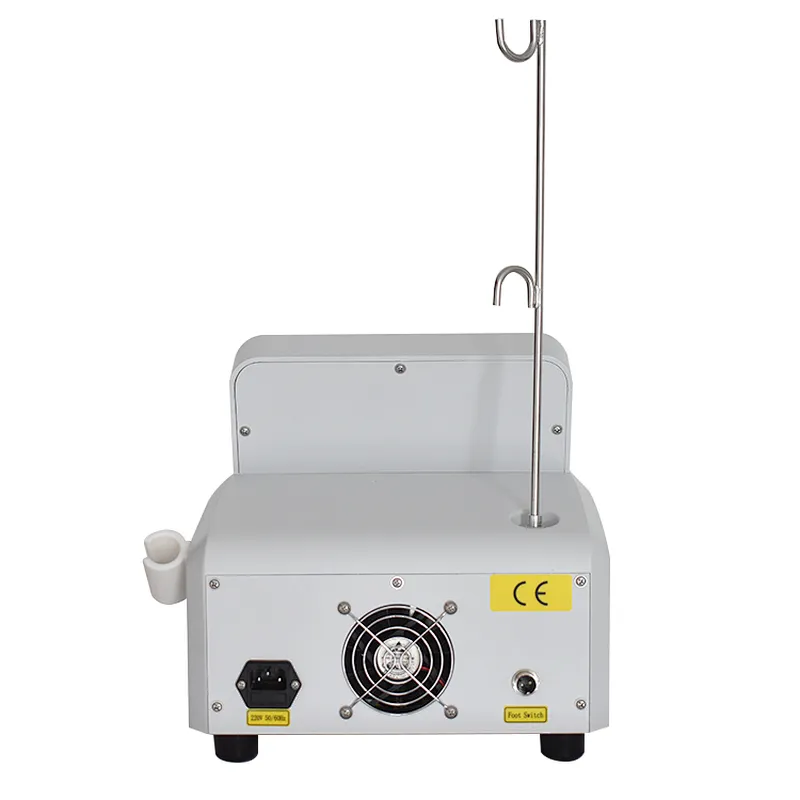

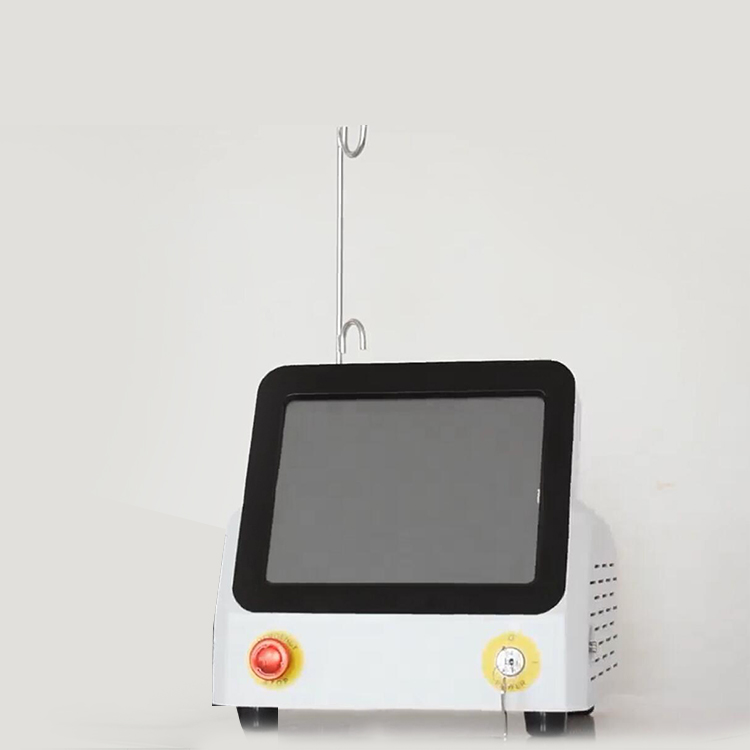

Surgury Laser 980nm 60W EVLT / EVLA Treatment Varicose Vein Ablation Laser Machine

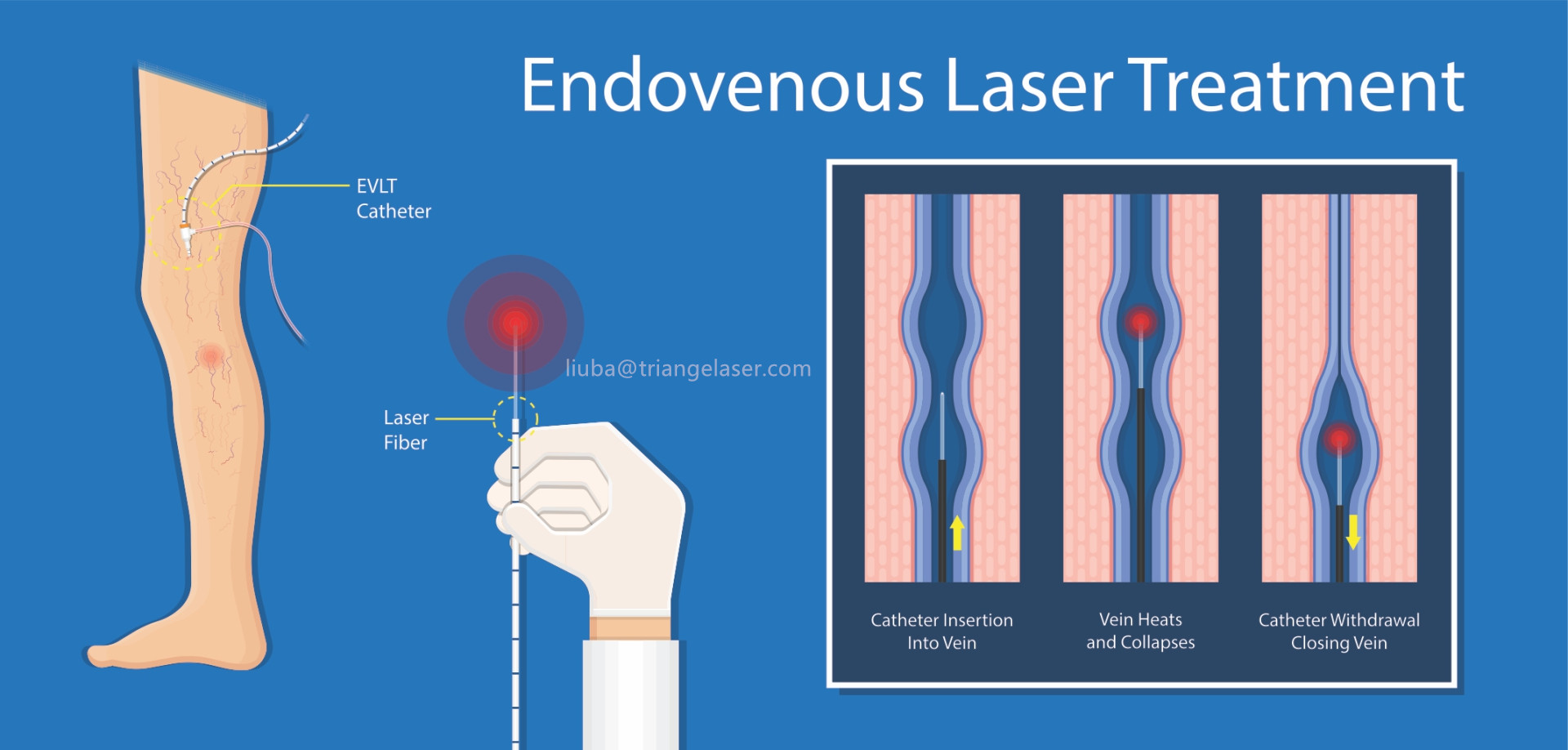

What is EVLT?
Endovenous laser treatment (EVLT) is a procedure that uses laser heat to treat varicose veins. It is a minimally invasive
procedure that makes use of catheters, lasers, and ultrasound to treat varicose veins. This procedure is performed most
often on veins that are still relatively straight and untwisted.
Endovenous Laser Treatment (EVLT) is a non-surgical, outpatient laser treatment for varicose veins. It utilizes ultrasound-guided technology to precisely deliver laser energy that targets malfunctioning veins and causes them to collapse. Once closed, the blood flow is naturally redirected to healthier veins.
Endovenous laser treatment (EVLT) is a procedure that uses laser heat to treat varicose veins. It is a minimally invasive
procedure that makes use of catheters, lasers, and ultrasound to treat varicose veins. This procedure is performed most
often on veins that are still relatively straight and untwisted.
Endovenous Laser Treatment (EVLT) is a non-surgical, outpatient laser treatment for varicose veins. It utilizes ultrasound-guided technology to precisely deliver laser energy that targets malfunctioning veins and causes them to collapse. Once closed, the blood flow is naturally redirected to healthier veins.

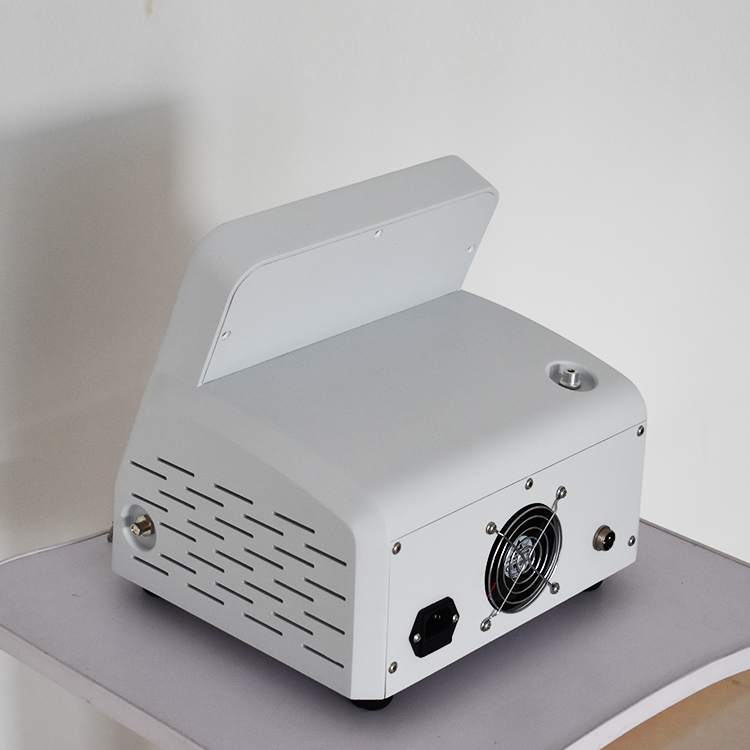

Products Description
Laser type | Diode Laser Gallium-Aluminum-Arsenide GaAlAs |
Laser Wavelength | 980 nm |
Fiber diameter | 600um radial fiber |
Output Power | 60w |
Working modes | CW, Single and Pulse Mode |
Pulse | 0.01-1s |
Delay | 0.01-1s |
Spot size | 20-40mm adjustble |
Voltage | 100-240V, 50/60HZ |
Size | 26.5*29*29 |
Weight | 6.4kg |
Laser interaction with tissue depends on the wavelength of choice. The Laseev laser comes in 2 versions - the 980nm and the 1470nm.
1.The 980nm laser with equal absorption in water and blood, offers a robust all-purpose surgical tool, and at 30Watts of output, a high power source for endovascular work.
2.The 1470nm laser with significantly higher absorption in water, provides a superior precision instrument for reduced collateral thermal damage around venous structures.Accordingly, it is highly recommended for endovascular work.
1.The 980nm laser with equal absorption in water and blood, offers a robust all-purpose surgical tool, and at 30Watts of output, a high power source for endovascular work.
2.The 1470nm laser with significantly higher absorption in water, provides a superior precision instrument for reduced collateral thermal damage around venous structures.Accordingly, it is highly recommended for endovascular work.
Endovenous occlusion of great saphenous vain and small saphenus vain

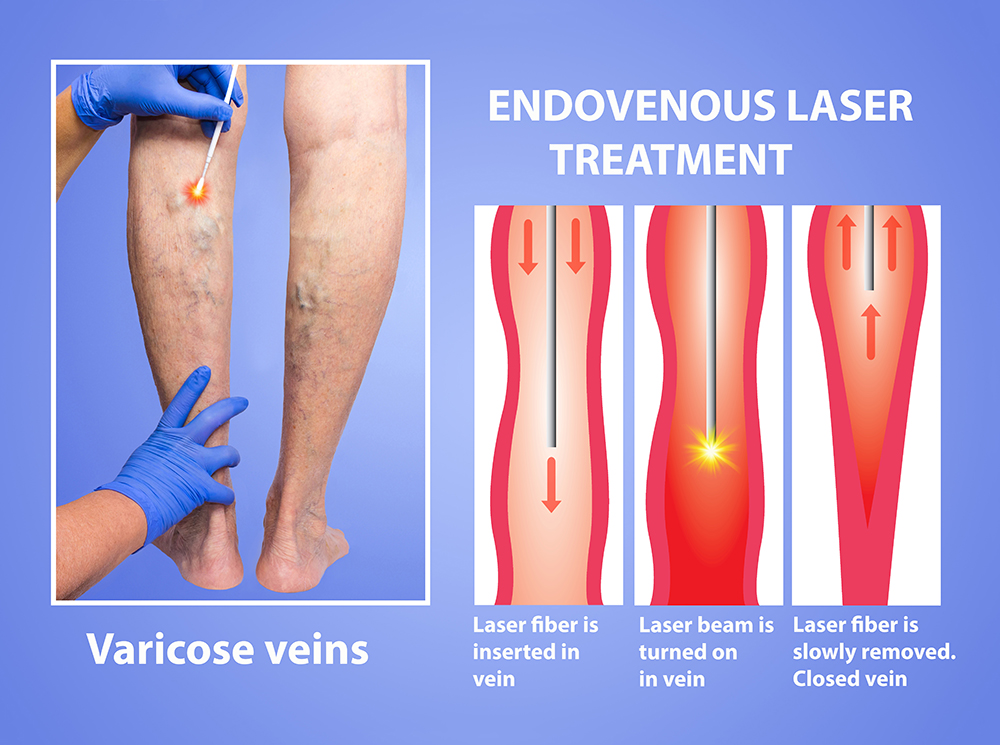

Endovenous laser ablation (EVLA) treats major varicose veins previously treated by stripping surgery. With ultrasound guidance, a laser fibre is placed into the abnormal vein through a tiny incision. The vein is then numbed with local anaesthetic, and the laser activated as the fibre is slowly removed. This produces a reaction in the vein wall along the treated section, resulting in collapse and sclerosis of the vein wall with minimal discomfort. The published success of EVLA treatment is between 95-98%, with far fewer complications than surgery. With the addition of EVLA to ultrasound guided sclerotherapy, it is expected that varicose vein surgery will be performed much less frequently in the future.
Endovenous laser ablation (EVLA) treats major varicose veins previously treated by stripping surgery. With ultrasound guidance, a laser fibre is placed into the abnormal vein through a tiny incision. The vein is then numbed with local anaesthetic, and the laser activated as the fibre is slowly removed. This produces a reaction in the vein wall along the treated section, resulting in collapse and sclerosis of the vein wall with minimal discomfort. The published success of EVLA treatment is between 95-98%, with far fewer complications than surgery. With the addition of EVLA to ultrasound guided sclerotherapy, it is expected that varicose vein surgery will be performed much less frequently in the future.

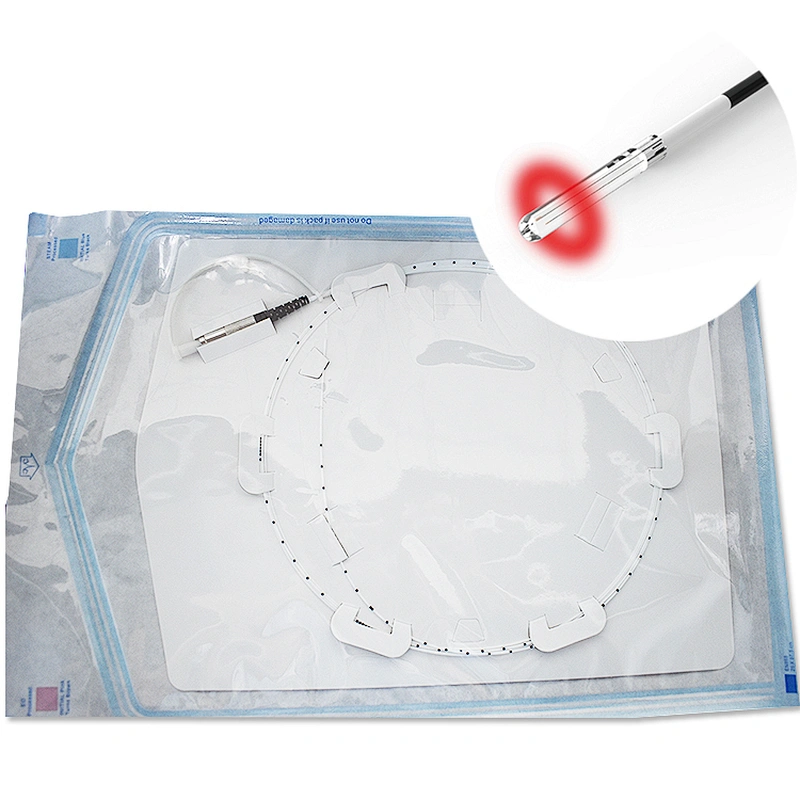

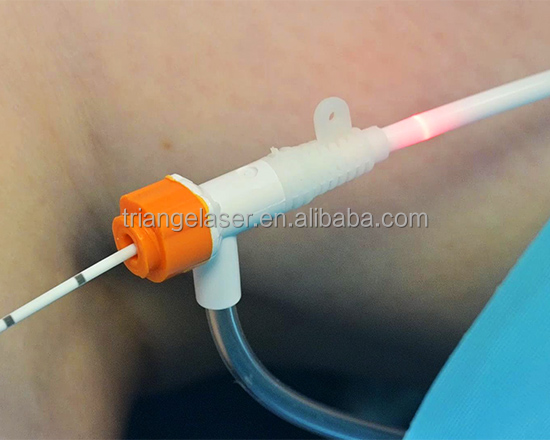

Why 360 Radial Fiber ?

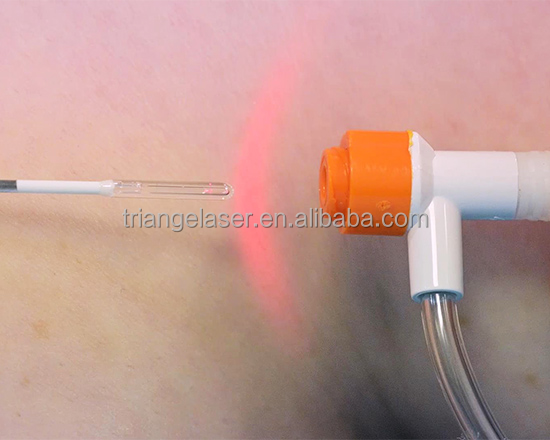

Radial fiber that emits at 360° affords the ideal endovenous thermal ablation. It is therefore possible to gently and evenly
introduce the laser energy into the lumen of the vein and ensure the closure of the vein based on photothermal destruction (at
temperatures between 100 and 120°C).
TRIANGEL RADIAL FIBER is equipped with safety markings for optimal control of the pullback process.
Radial fiber that emits at 360° affords the ideal endovenous thermal ablation. It is therefore possible to gently and evenly
introduce the laser energy into the lumen of the vein and ensure the closure of the vein based on photothermal destruction (at
temperatures between 100 and 120°C).
TRIANGEL RADIAL FIBER is equipped with safety markings for optimal control of the pullback process.
