- place of origin:Beijing, China
- brand name:TAZLASER
- model number:Laseev
- q-switch:NO
- laser type:laser
- style:PORTABLE
- type:laser
- feature:Blood Vessels Removal, varicose leg veins treatment
- application:For Commercial
- after-sales service provided:Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
- warranty:1 Year
- Language:english, French, German, Italian, Japanese, Portuguese, RUSSIAN, Spanish, Chinese, KOREAN
- Strength:high
- Power:47w/77w, 30W+17W/60W+17W
- Technology:diode laser therapy
- Cooling system:Air Cooling
- Wavelengths:980nm 1470nm

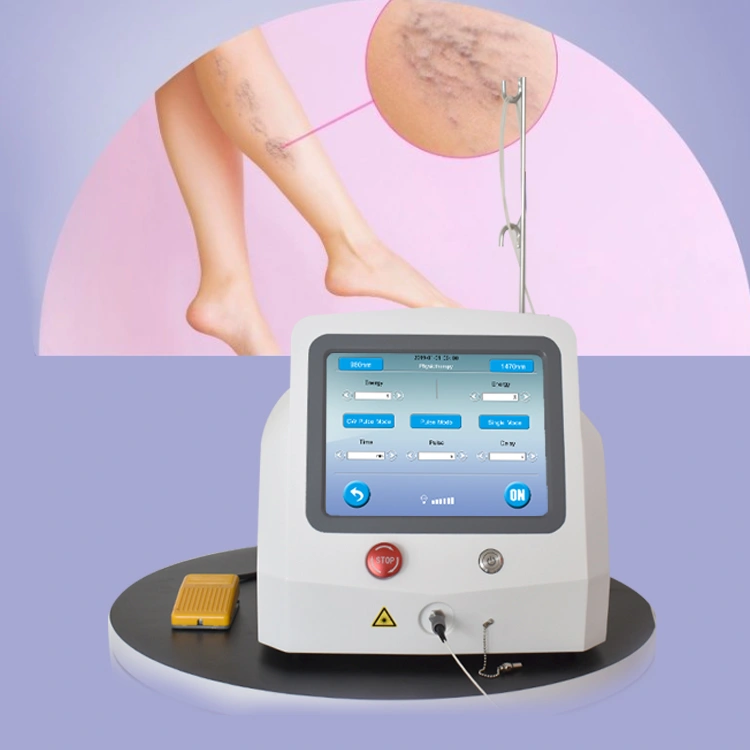

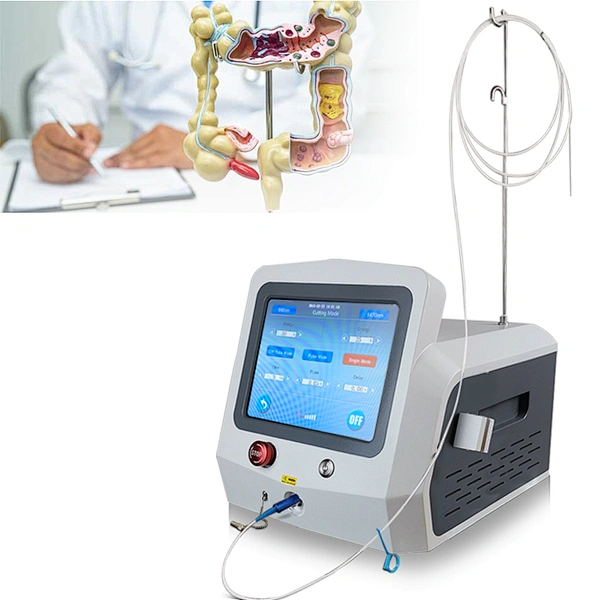

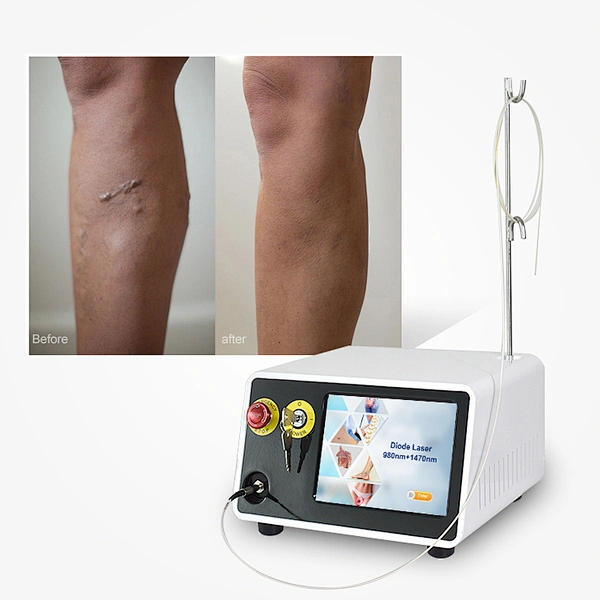

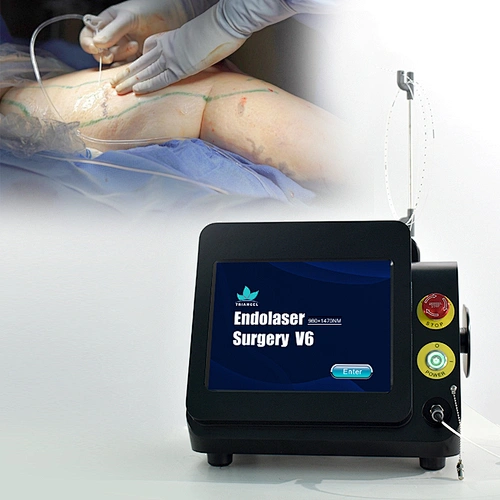

- Product name:980+1470nm laser EVLT Laser Machine
- Wavelength:980+1470nm
- Screen:8.4 Inch Color Touch Screen
- Net weight:8.45kg
- Working Mode:CW and Pulse,single Mode
- Pulse/Delay:0.00s-1.00s
- Certification:CE/ISO9001/ISO13485
- Indication light:650nm,intensity control
- OEM:Acceptable

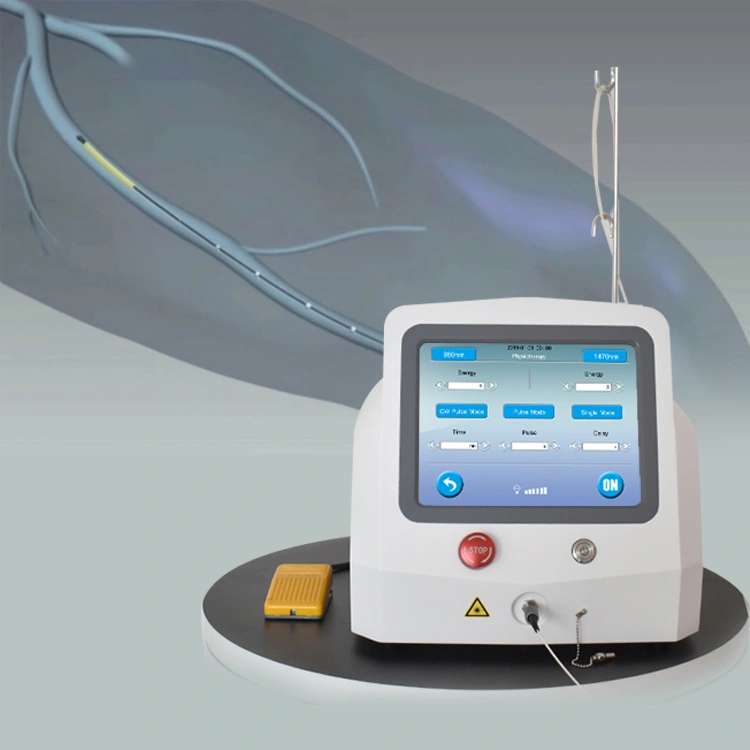

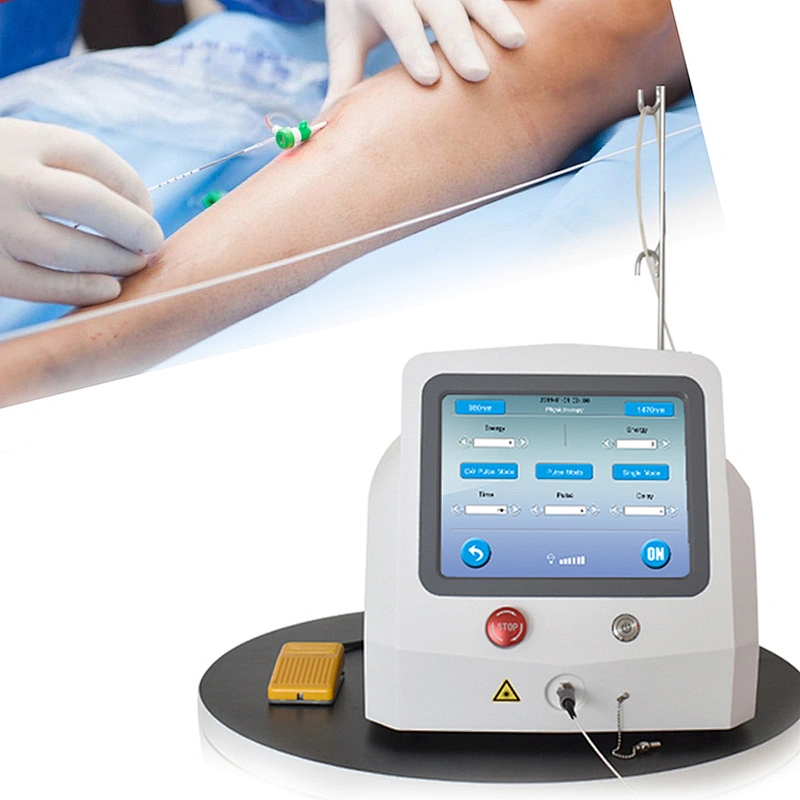

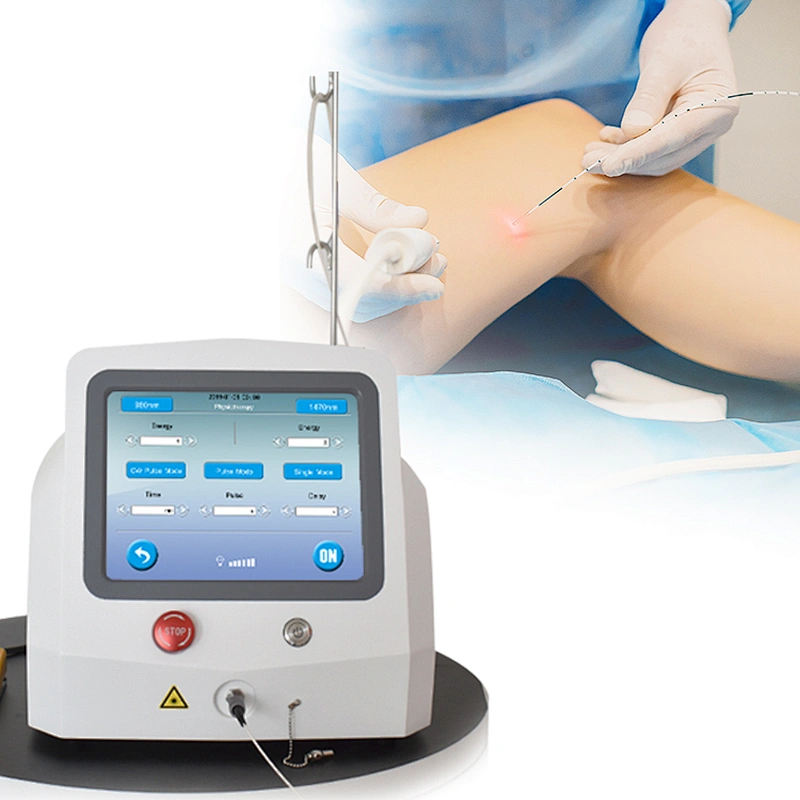

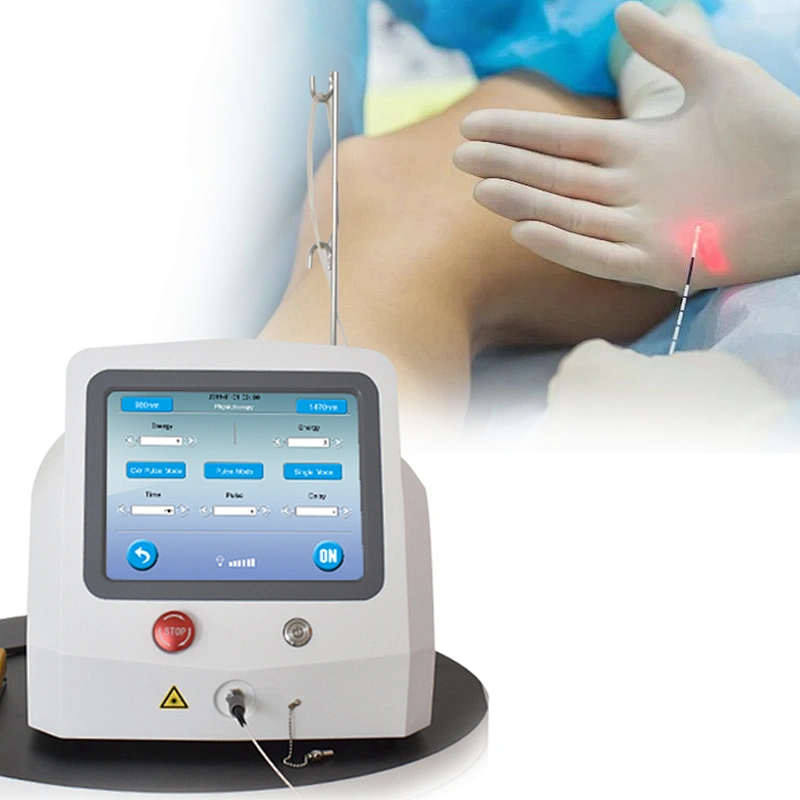

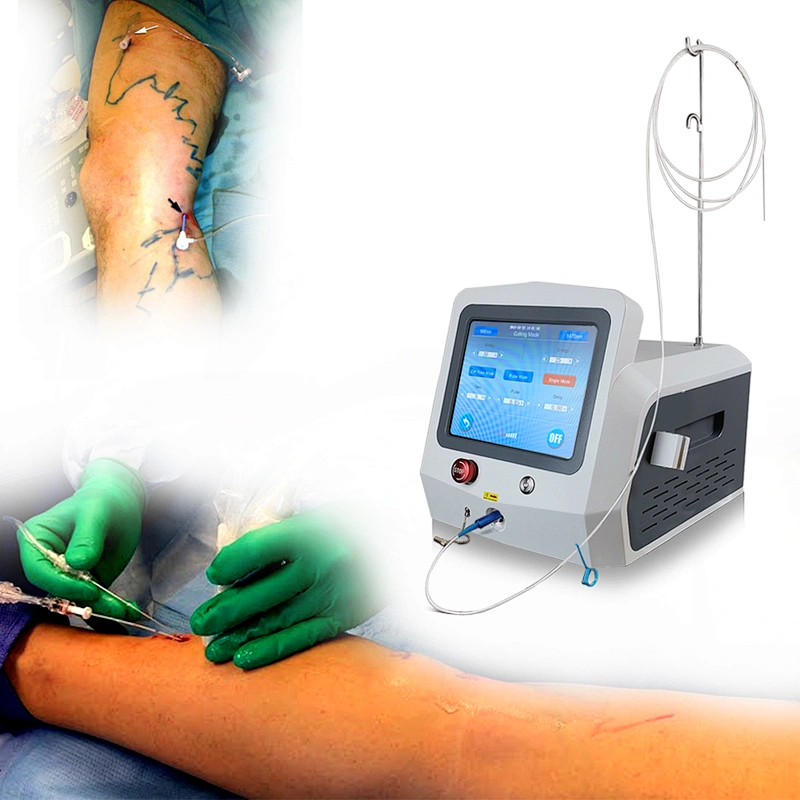

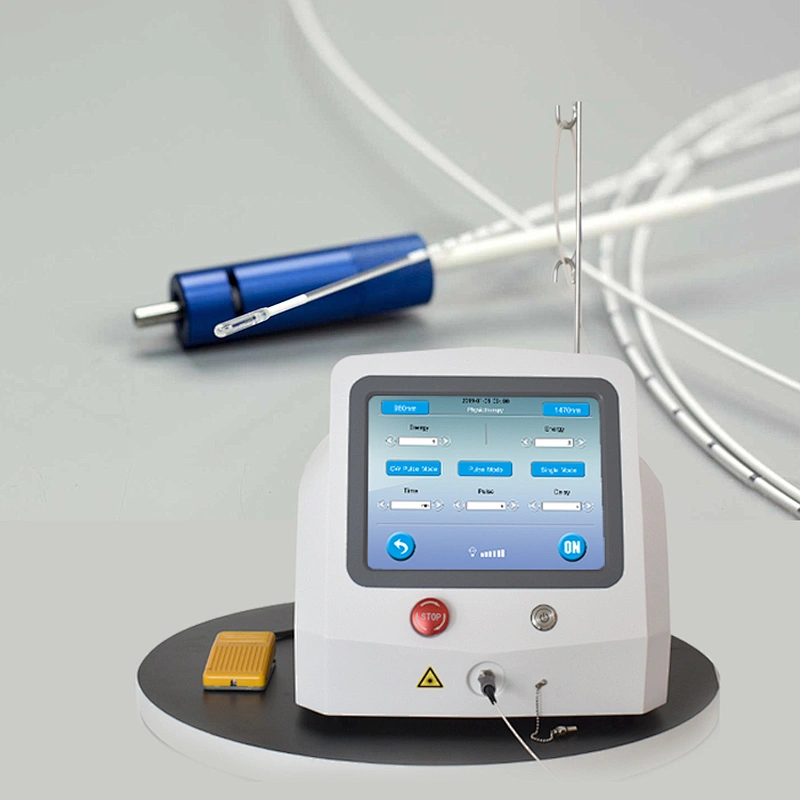

EVLT Varicose Vein Laser Treatment 1470nm 980nm Diode Laser Fiber Transfer Mini invasive endovascular Surgery Beauty Equipment

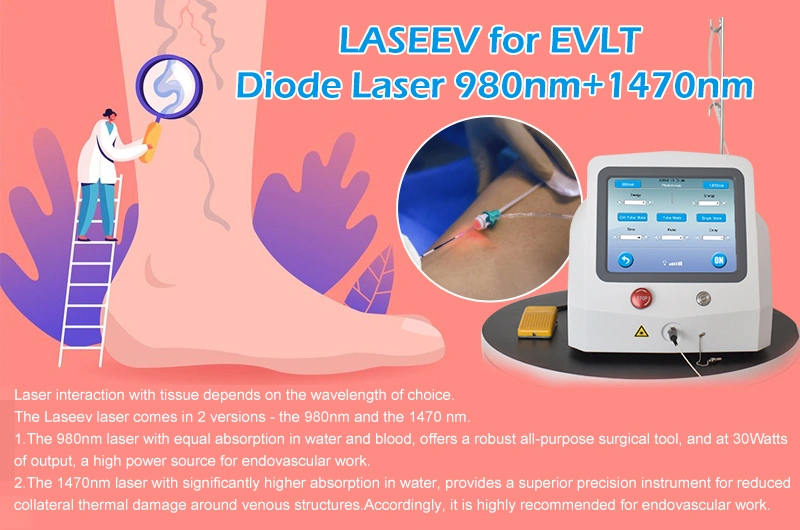

Laser interaction with tissue depends on the wavelength of choice. The Laseev laser comes in 2 versions - the 980nm and the 1470nm.
1.The 980nm laser with equal absorption in water and blood, offers a robust all-purpose surgical tool, and at 30/60Watts of
output, a high power source for endovascular work.
1.The 980nm laser with equal absorption in water and blood, offers a robust all-purpose surgical tool, and at 30/60Watts of
output, a high power source for endovascular work.
2.The 1470nm laser with significantly higher absorption in water, provides a superior precision instrument for reduced collateral thermal damage around venous structures.Accordingly, it is highly recommended for endovascular work.
Products Description
Model | Laseev |
Laser type | Diode Laser Gallium-Aluminum-Arsenide GaAlAs |
Wavelength | 980nm+1470nm |
Output Power | 30W+17W/60W+17W |
Working modes | CW, Pulse and Single |
Pulse | 0.00-1s |
Delay | 0.00-1s |
Indication light | 650nm,intensity control |
Fiber | 400/600/800µm Fiber optional |
The 980+1470nm diode laser offers a wavelength with superior performance for ablation of diseased veins - 1470 nm.The EVLT is effective, safe, quick and painless. This technique is lighter than the traditional surgery:
Optimal Laser 1470nm

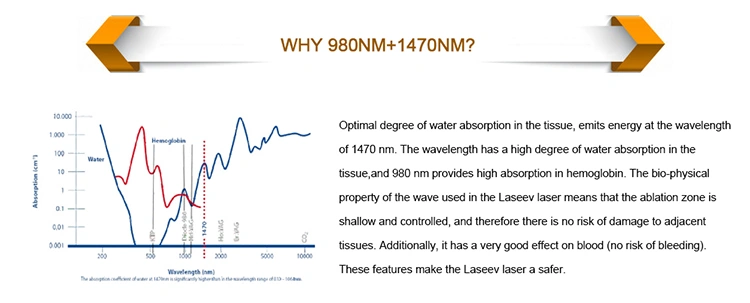

Laser wavelength 1470 is, at least, 40 times better absorbed by water and oxyhemoglobin than 980nm laser, allowing selective
destruction of the vein, with less energy and reducing side effects.
As a water-specific laser, the TR1470nm laser targets water as the chromophore to absorb the laser energy. Since the vein
structure is mostly water, it is theorized that the 1470 nm laser wavelength efficiently heats endothelial cells with a low risk
of collateral damage, resulting in an optimal vein ablation.

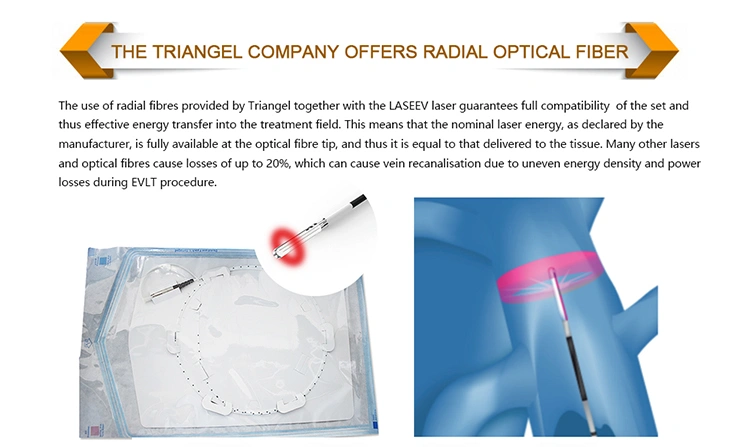

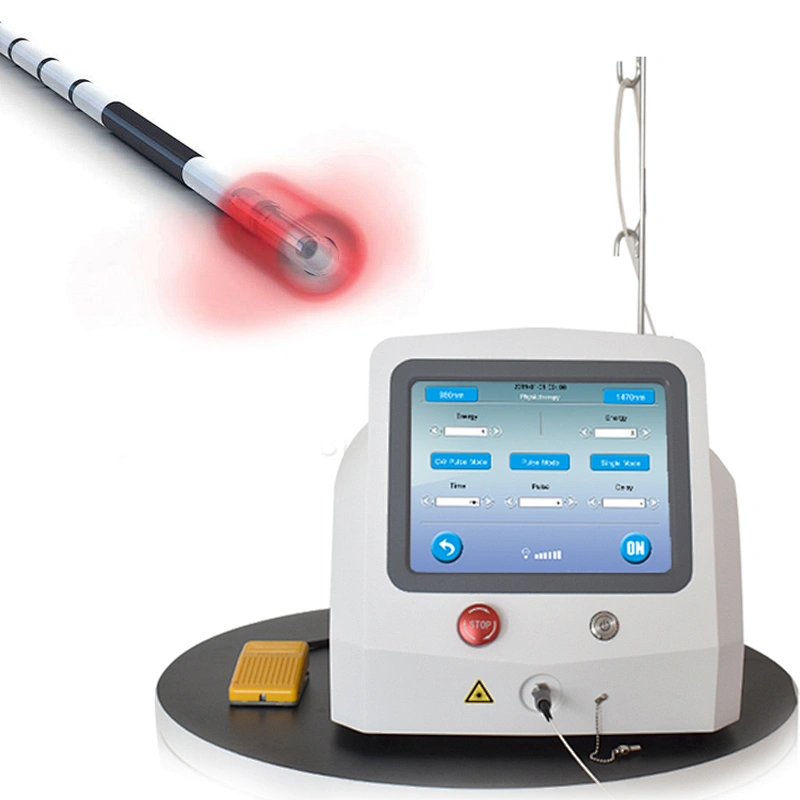

Why 360 Radial Fiber ?
Radial fiber that emits at 360° affords the ideal endovenous thermal ablation. It is therefore possible to gently and evenly
introduce the laser energy into the lumen of the vein and ensure the closure of the vein based on photothermal destruction (at
temperatures between 100 and 120°C).
TRIANGEL RADIAL FIBER is equipped with safety markings for optimal control of the pullback process.

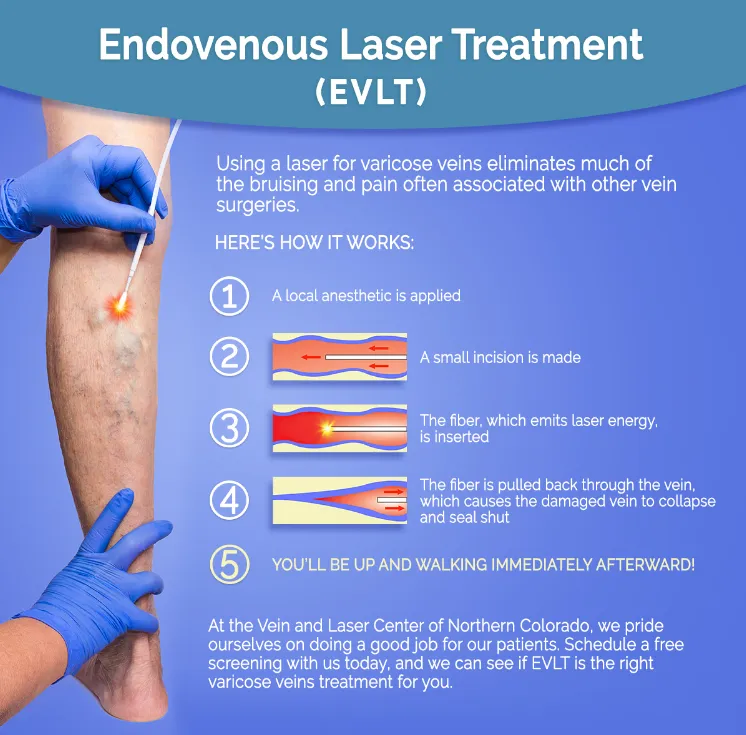

For the treatment:
You’ll lie down on a hospital bed.
An imaging method, such as ultrasound, is used to guide the procedure.
The leg to be treated is injected with numbing medicine. Once your leg is numb, a needle makes a small hole (puncture) in the vein to be treated.
The catheter containing the laser heat source is inserted into your vein.
More numbing medicine may be injected around the vein. Once the catheter is in the right position, it's then slowly drawn backward.
As the catheter sends out heat, the vein is closed off.
In some cases, other side branch varicose veins may be removed or tied off through several small cuts (incisions).
When the treatment is done, the catheter is removed.
Pressure is applied to the insertion site to stop any bleeding.
An elastic compression stocking or a bandage may then be put on your leg.
The treatment takes 45 to 60 minutes, you can go home the same day.
Applications
Endovenous occlusion of great saphenous vain and small saphenus vain
The procedure is performed in the clinic with topical anesthetic cream and takes approximately 30-45 minutes. There is minimal or no pain and no downtime, the patient can resume normal activity immediately. This treatment should be performed 6-8 weeks apart and for best results, avoidance of direct sunlight to the treated area is recommended.
The procedure is performed in the clinic with topical anesthetic cream and takes approximately 30-45 minutes. There is minimal or no pain and no downtime, the patient can resume normal activity immediately. This treatment should be performed 6-8 weeks apart and for best results, avoidance of direct sunlight to the treated area is recommended.

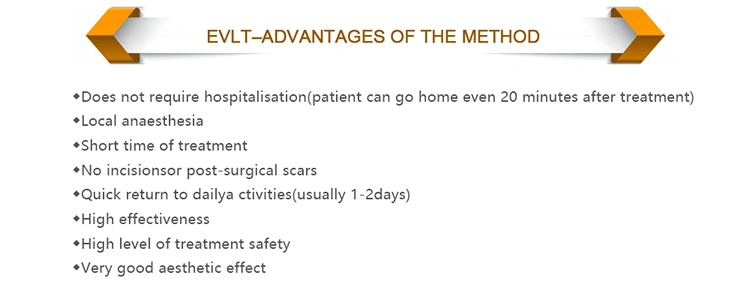

EVLT–advantages of the method:
1.Does not require hospitalisation(patient can go home even 20 minutes after treatment)
2.Local anaesthesia
3.Short time of treatment
4.No incisionsor post-surgical scars
5.Quick return to dailya ctivities(usually 1-2days)
6.High effectiveness
7.High level of treatment safety
8.Very good aesthetic effect
1.Does not require hospitalisation(patient can go home even 20 minutes after treatment)
2.Local anaesthesia
3.Short time of treatment
4.No incisionsor post-surgical scars
5.Quick return to dailya ctivities(usually 1-2days)
6.High effectiveness
7.High level of treatment safety
8.Very good aesthetic effect
Benefits
*Treating vein disease with EVLT offers patients numerous benefits, including a success rate of up to 98% percent,
*NO hospitalization, and a quick recovery with strong patient satisfaction.
* Effective at eliminating painful symptoms
* Return to daily activities immediately after treatment
* Performed in an outpatient clinic
* No scarring or stitches
* Improves overall quality of life
* Decreases your risk of deep vein thrombosis (DVT)
* Return to daily activities immediately after treatment
* Performed in an outpatient clinic
* No scarring or stitches
* Improves overall quality of life
* Decreases your risk of deep vein thrombosis (DVT)
1. What is Intravenous Laser?
4. How long does it take to return to normal activities after receiving endovenous laser treatment? After the treatment, the
patient can walk on the ground after a short rest, and his daily life is basically unaffected, and he can resume sports after
about two weeks.
Endovenous laser is a minimally invasive treatment for varicose veins that is far less invasive than traditional saphenous vein extraction and provides patients with a more desirable appearance due to less scarring. The principle
of treatment is to use laser energy inside a vein (intravenous lumen) to destroy the already troubled blood vessel.
of treatment is to use laser energy inside a vein (intravenous lumen) to destroy the already troubled blood vessel.

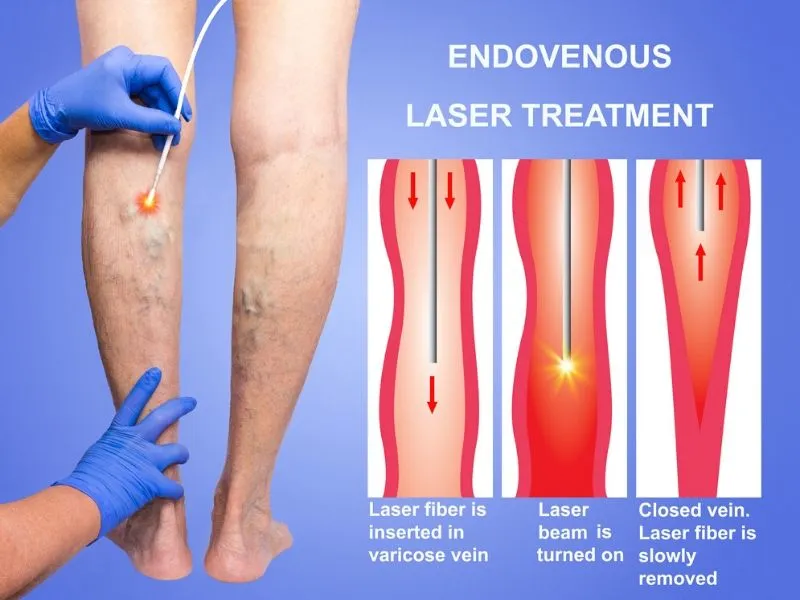

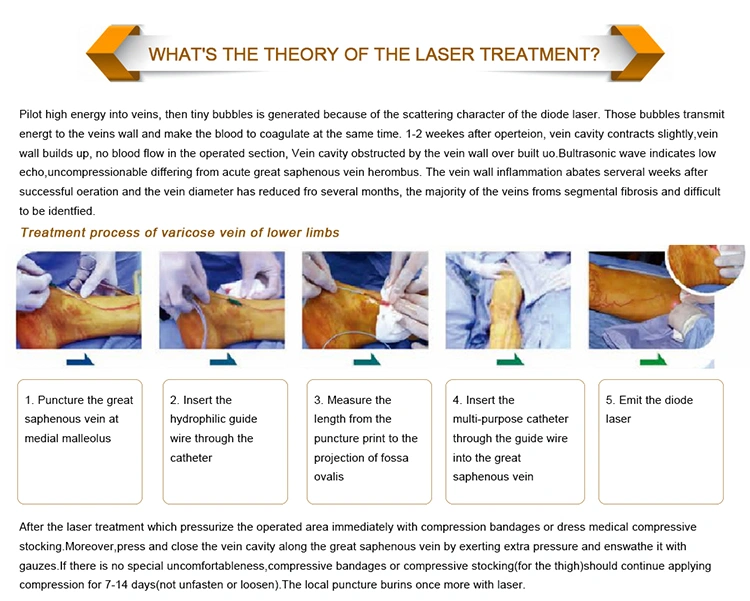

2. How to perform endovenous laser therapy?
The endovenous laser treatment procedure can be performed in the clinic, the patient is fully
awake during the procedure, and the doctor will monitor the condition of the blood vessels with ultrasound equipment. The doctor
first injects a local anesthetic into the patient's thigh and creates an opening in the thigh that is slightly larger than the
pinhole. Then, a fiber optic catheter is inserted from the wound into the vein. As it travels through the diseased vein, the fiber
emits laser energy to cauterize the vein wall. It shrinks, and eventually the entire vein is ablated, completely solving the
problem of varicose veins. After the treatment is completed, the doctor will properly bandage the wound, and the patient can walk
as usual and continue with normal life and activities.
awake during the procedure, and the doctor will monitor the condition of the blood vessels with ultrasound equipment. The doctor
first injects a local anesthetic into the patient's thigh and creates an opening in the thigh that is slightly larger than the
pinhole. Then, a fiber optic catheter is inserted from the wound into the vein. As it travels through the diseased vein, the fiber
emits laser energy to cauterize the vein wall. It shrinks, and eventually the entire vein is ablated, completely solving the
problem of varicose veins. After the treatment is completed, the doctor will properly bandage the wound, and the patient can walk
as usual and continue with normal life and activities.
3. What is the difference between endovenous laser treatment and traditional surgery?
Compared with traditional vascular extraction surgery, endovenous laser treatment is less invasive, with
smaller wounds, the patient does not need general anesthesia, and the recovery is faster. Post-operative pain, wound redness, etc.
smaller wounds, the patient does not need general anesthesia, and the recovery is faster. Post-operative pain, wound redness, etc.
4. How long does it take to return to normal activities after receiving endovenous laser treatment? After the treatment, the
patient can walk on the ground after a short rest, and his daily life is basically unaffected, and he can resume sports after
about two weeks.
5. What are the benefits of endovenous laser therapy?
Intravenous laser treatment generally only requires local
anesthesia, so it is suitable for the vast majority of patients. Even patients who are suffering from diseases or taking drugs and
cannot be under general anesthesia can receive this treatment. The treated wound is smaller than that of total surgery, and the
sequelae such as wound swelling and pain are also less severe. Most people can resume normal activities the same day after
completing the treatment.
anesthesia, so it is suitable for the vast majority of patients. Even patients who are suffering from diseases or taking drugs and
cannot be under general anesthesia can receive this treatment. The treated wound is smaller than that of total surgery, and the
sequelae such as wound swelling and pain are also less severe. Most people can resume normal activities the same day after
completing the treatment.
6. Is endovenous laser therapy suitable for all types of varicose veins?
Most varicose veins can also be treated with intraluminal laser, but this treatment is mainly aimed at larger varicose veins and is not suitable for the treatment
of thin, tortuous or abnormal blood vessels. There are many different ways to deal with varicose veins and spider webs, and your
doctor will help you make an appropriate choice based on your situation.
of thin, tortuous or abnormal blood vessels. There are many different ways to deal with varicose veins and spider webs, and your
doctor will help you make an appropriate choice based on your situation.

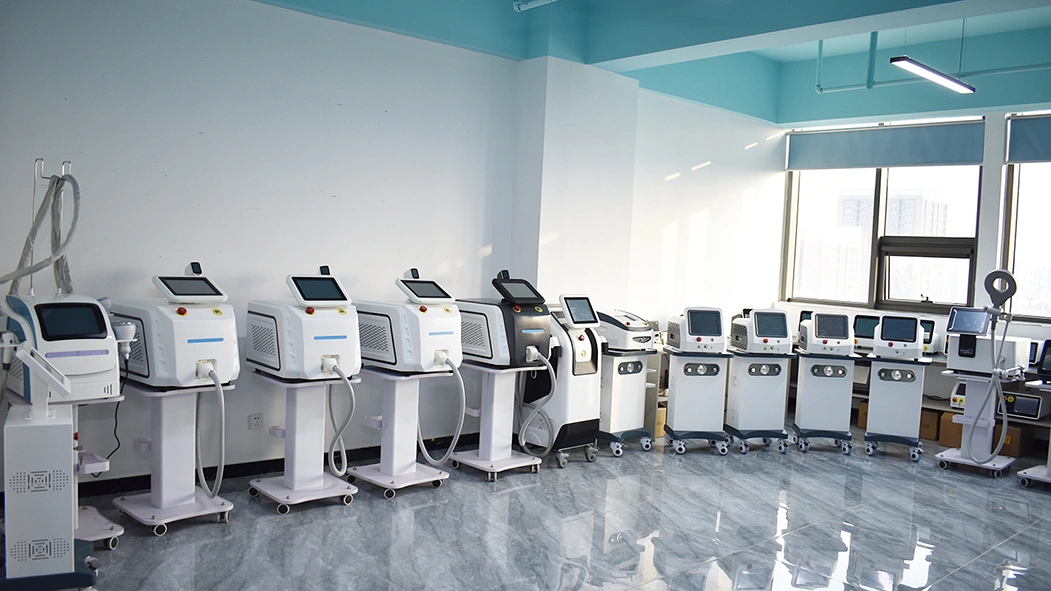

Company Profile
