place of origin:Beijing, China
brand name:TAZLASER
model number:TR-B1470
q-switch:NO
laser type:LASER
style:Stationary
type:Desktop
feature:Blood Vessels Removal
application:For Commercial
after-sales service provided:Free spare parts, Online support, Video technical support
warranty:1 Year
Language:english, French, German, Italian, Japanese, Portuguese, RUSSIAN, Spanish, Chinese, KOREAN
Strength:high
Power:17w
Technology:diode laser
Cooling system:Air Cooling
Wavelengths:1470nm
power modes:Pulsed, Continuous
Product name:Diode laser Veincure 1470
Function:veins laser Removal
Wavelength:1470nm
Fiber:400/600/800μm radial fiber
Pulse Width:0.05-1s
Fiber interface:SMA905 international standard interface
Indication light:650nm,intensity control
Net weight:6.3kg
Packing dimension:57*38*35cm
Certification:ISO9001

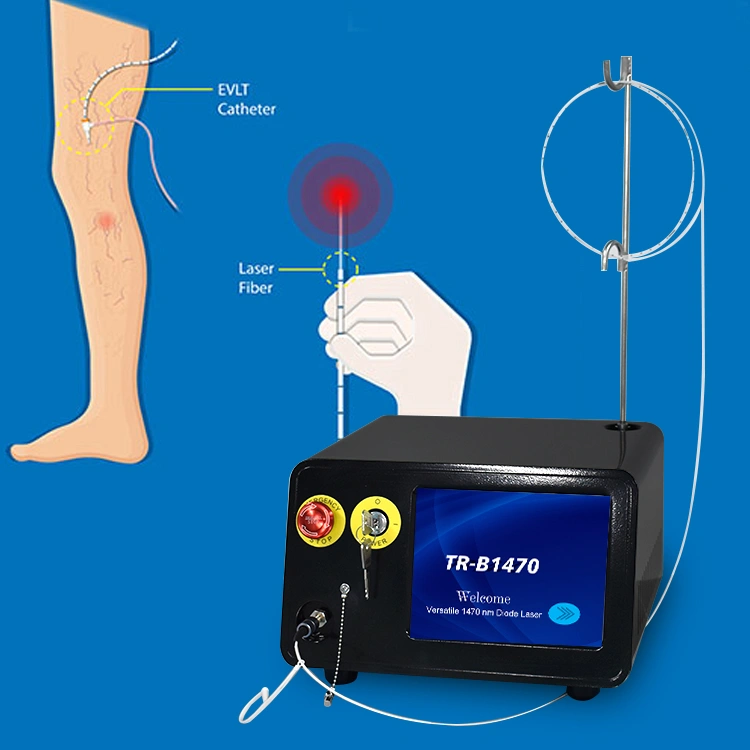

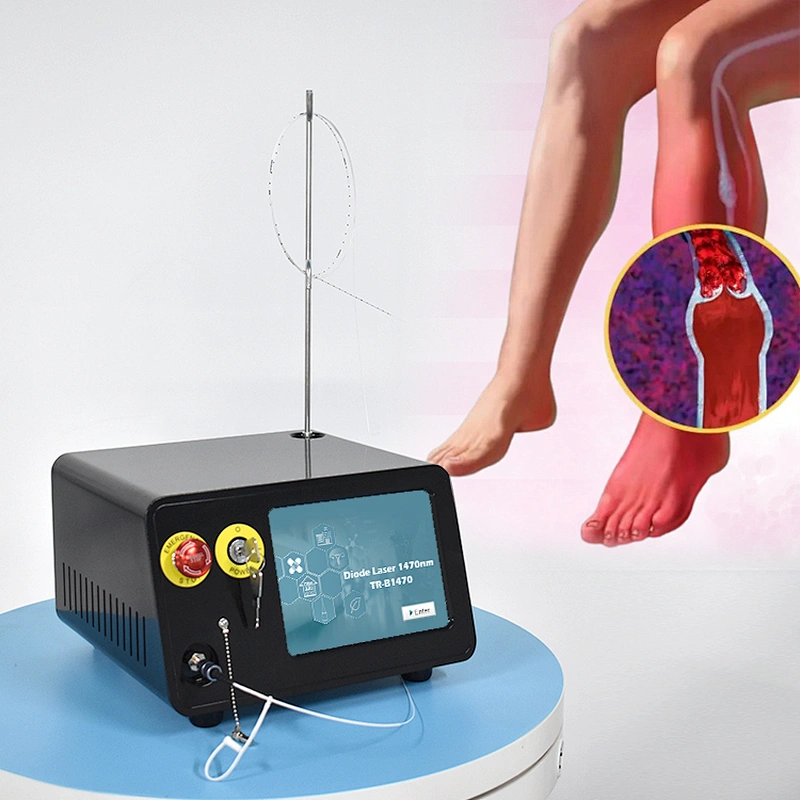

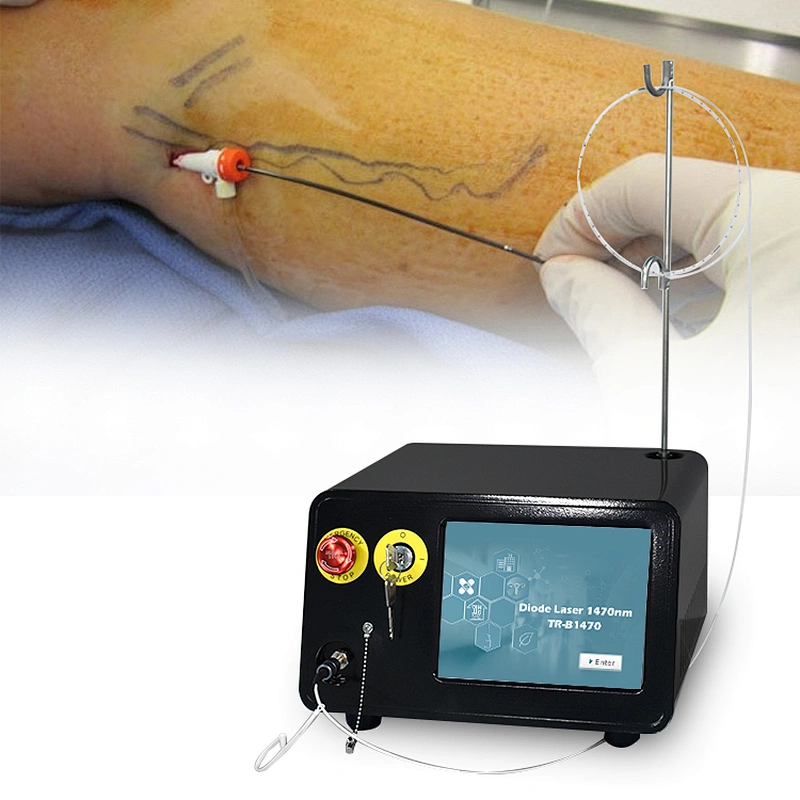

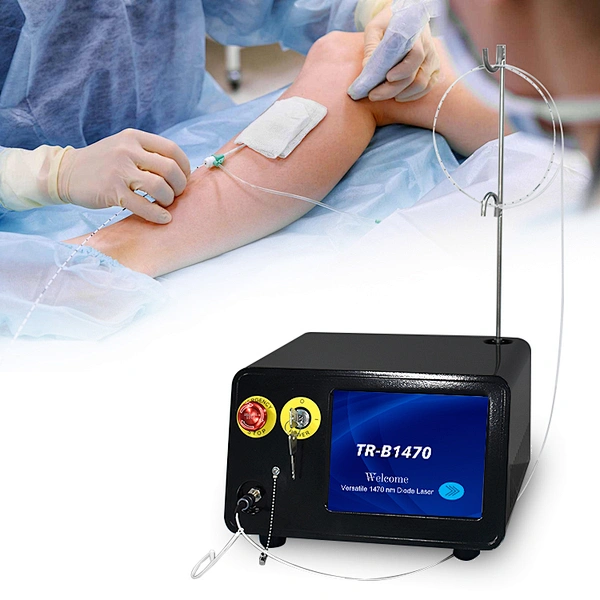

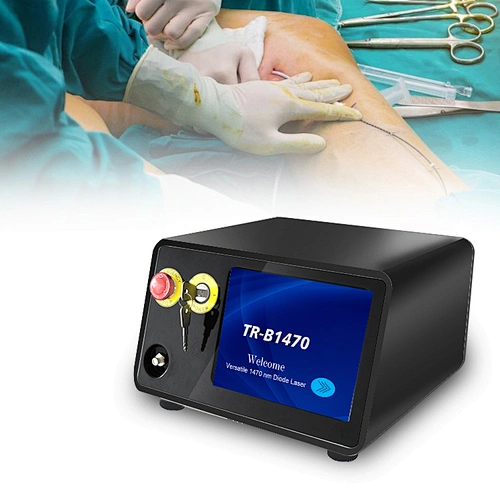

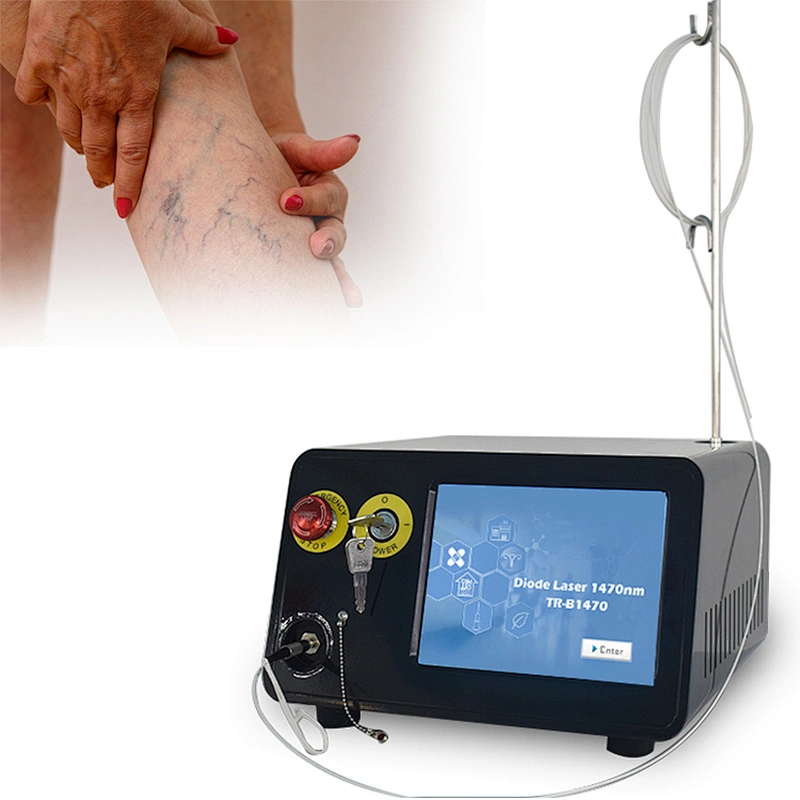

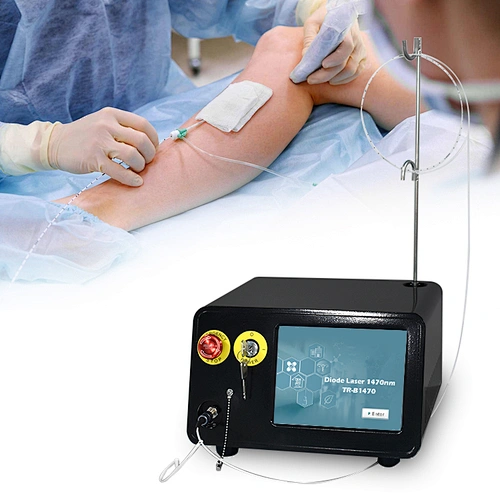

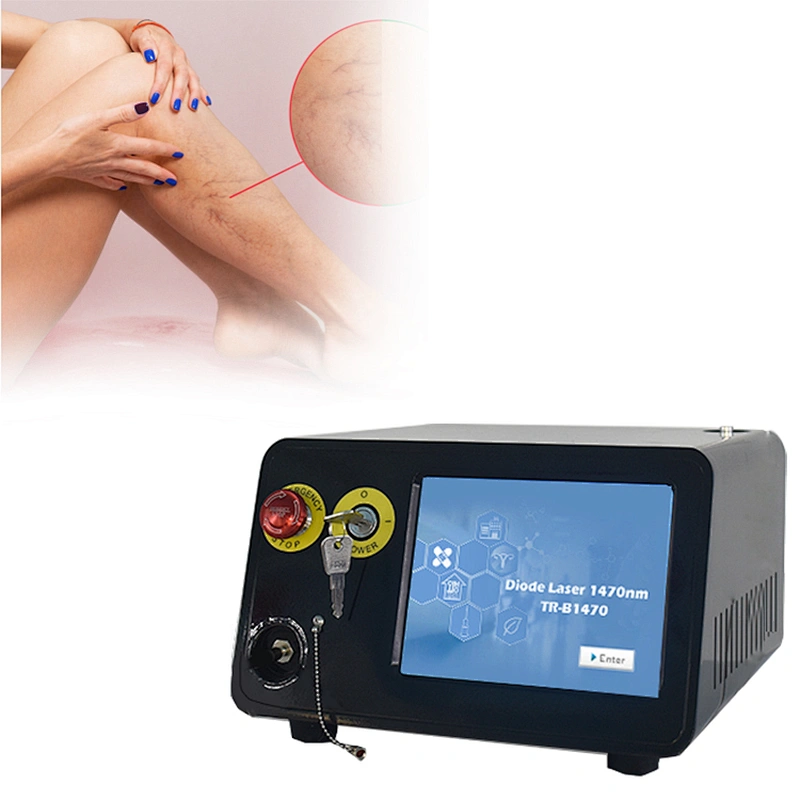

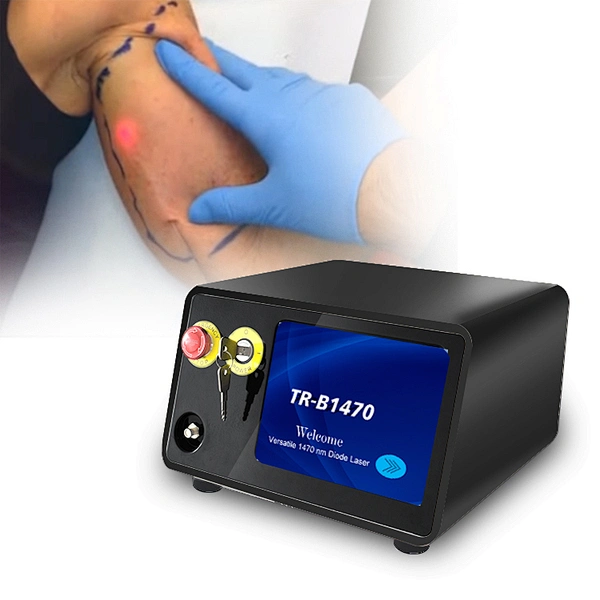

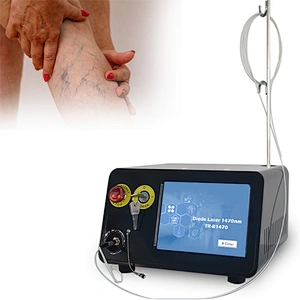

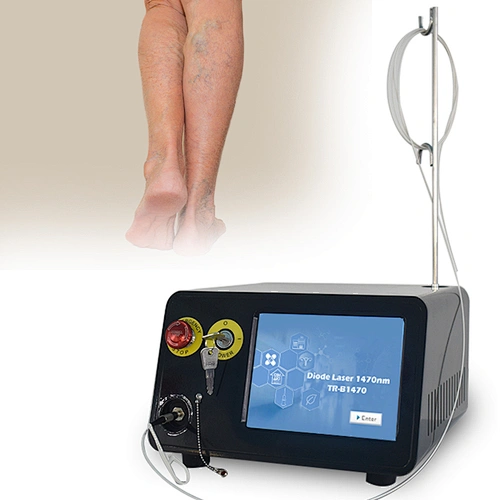

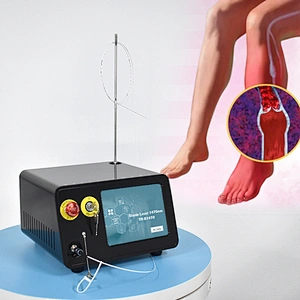

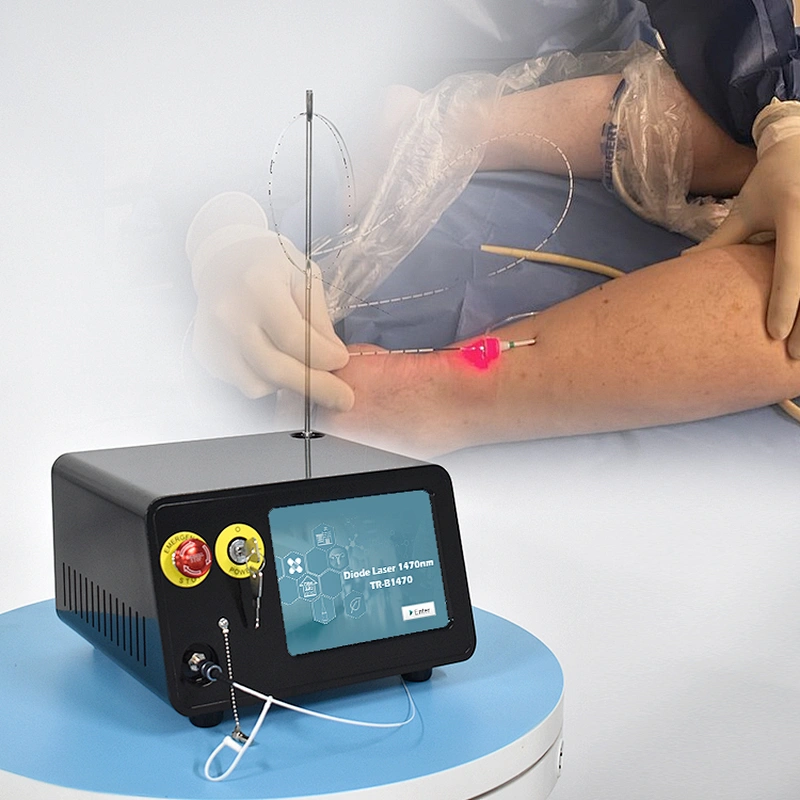

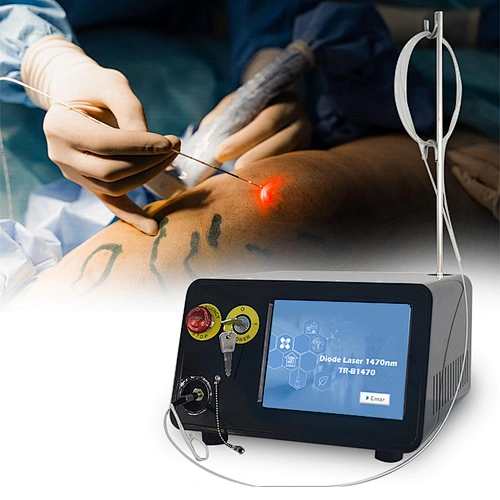

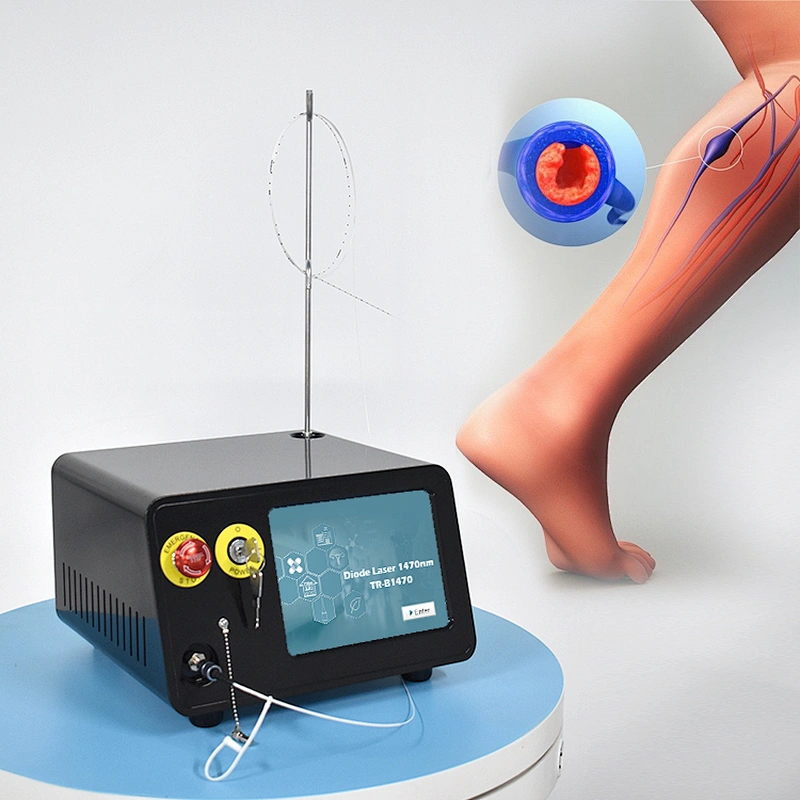

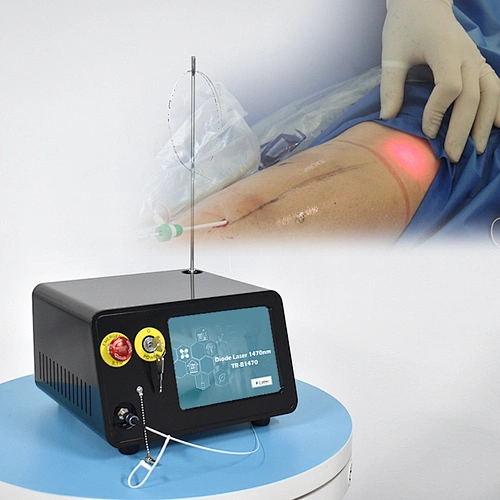

Diode Laser Ablation EVLT EVLA1470nm Endovenous Laser Treatment Legs Varicose Vein Surgical Device

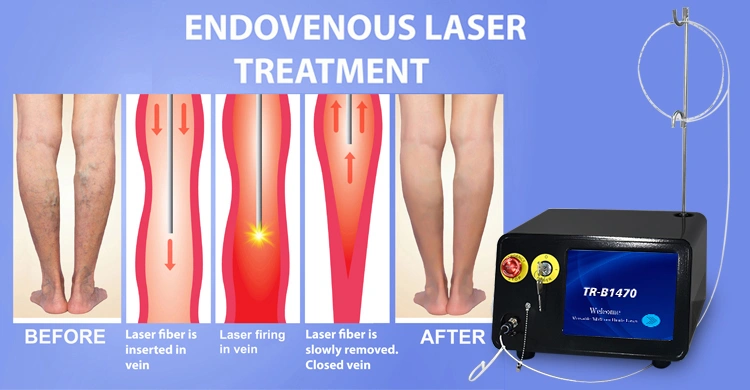

What is EVLT?

Endovenous laser treatment (EVLT) is a procedure that uses laser heat to treat varicose veins. It is a minimally invasive
procedure that makes use of catheters, lasers, and ultrasound to treat varicose veins. This procedure is performed most often on veins that are still relatively straight and untwisted.

Once closed, the blood flow is naturally redirected to healthier veins.

Products Description

Laser type	Diode Laser Gallium-Aluminum-Arsenide GaAlAs
Laser Wavelength	1470nm
Fiber diameter	400um 600 um metal covered radial fiber
Output Power	15w 30w 60W
Working modes	CW and Pulse Mode
Pulse	0.01-1s
Delay	0.01-1s
Spot size	20-40mm adjustble
Voltage	100-240V, 50/60HZ
Size	573835cm
Weight	18kg

Laser interaction with tissue depends on the wavelength of choice. The Laseev laser comes in 1470nm.

.The 1470nm laser with significantly higher absorption in water, provides a superior precision instrument for reduced collateral thermal damage around venous structures.Accordingly, it is highly recommended for endovascular work.

Laser wavelength 1470 is, at least, 40 times better absorbed by water and oxyhemoglobin than 980nm laser, allowing selective destruction of the vein, with less energy and reducing side effects.

As a water-specific laser, the TR1470nm laser targets water as the chromophore to absorb the laser energy. Since the vein
structure is mostly water, it is theorized that the 1470 nm laser wavelength efficiently heats endothelial cells with a low risk
of collateral damage, resulting in an optimal vein ablation.

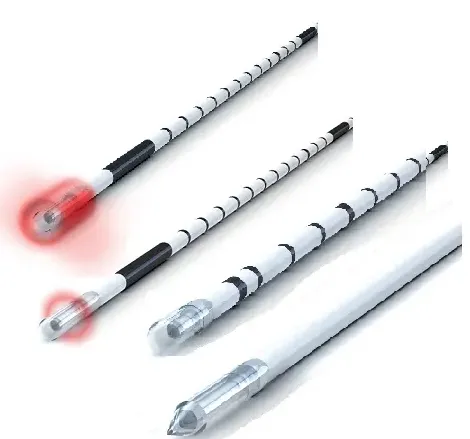

360°Radial Fiber 600um

TRIANGELASER 360 fiber technology provides you with the efficiency of circular emission, ensuring deposition of energy directly on the vessel wall.

The tip of the fiber is comprised of an extra smooth glass capillary, directly connected to a marked smooth jacket, allowing easy direct insertion into the vein.The fiber uilizes a simple procedure kit with a short introducer, reducing steps and procedure time.

Key Advantages
* Circular emission technology
* Reduced number of procedural steps
* Very safe and smooth insertion

Radial fiber that emits at 360° affords the ideal endovenous thermal ablation. It is therefore possible to gently and evenly
introduce the laser energy into the lumen of the vein and ensure the closure of the vein based on photothermal destruction (at temperatures between 100 and 120°C).
TRIANGEL RADIAL FIBER is equipped with safety markings for optimal control of the pullback process.

Products Advantages

1.Germany laser generator with more than 3 years lifetime ,max.30w output laser energy;

2.Curative effect: operation under direct vision, the main branch can closed of tortuous vein clumps

3.Patients with mild disease can be treated in the outpatient service.

4.Postoperative secondary infection, less pain, quick recovery.

5.Surgical operation is simple, treatment time is greatly shortened, reduce patient's much pain

6.Beautiful appearance, almost no scar after surgery.

7.Minimally invasive, less bleeding.

For the treatment:

You’ll lie down on a hospital bed. An imaging method, such as ultrasound, is used to guide the procedure.
The leg to be treated is injected with numbing medicine. Once your leg is numb, a needle makes a small hole (puncture) in the vein to be treated.

The catheter containing the laser heat source is inserted into your vein.
More numbing medicine may be injected around the vein. Once the catheter is in the right position, it's then slowly drawn backward.
As the catheter sends out heat, the vein is closed off.
In some cases, other side branch varicose veins may be removed or tied off through several small cuts (incisions).
When the treatment is done, the catheter is removed.
Pressure is applied to the insertion site to stop any bleeding.
An elastic compression stocking or a bandage may then be put on your leg.
The treatment takes 45 to 60 minutes, you can go home the same day.

Application

During the EVLA procedure, the surgeon uses ultrasound to find the vein to be treated. The veins that can be treated are the main venous trunks of the legs:

Great Saphenous Vein (GSV)

Small Saphenous Vein (SSV)

Their major tributaries such as the Anterior Accessory Saphenous Veins (AASV)

Endovenous occlusion of great saphenous vain and small saphenus vain

Endovenous laser ablation (EVLA) treats major varicose veins previously treated by stripping surgery. With ultrasound guidance, a laser fibre is placed into the abnormal vein through a tiny incision. The vein is then numbed with local anaesthetic, and the laser activated as the fibre is slowly removed. This produces a reaction in the vein wall along the treated section, resulting in collapse and sclerosis of the vein wall with minimal discomfort.

The published success of EVLA treatment is between 95-98%, with far fewer complications than surgery. With the addition of EVLA to ultrasound guided sclerotherapy, it is expected that varicose vein surgery will be performed much less frequently in the future.

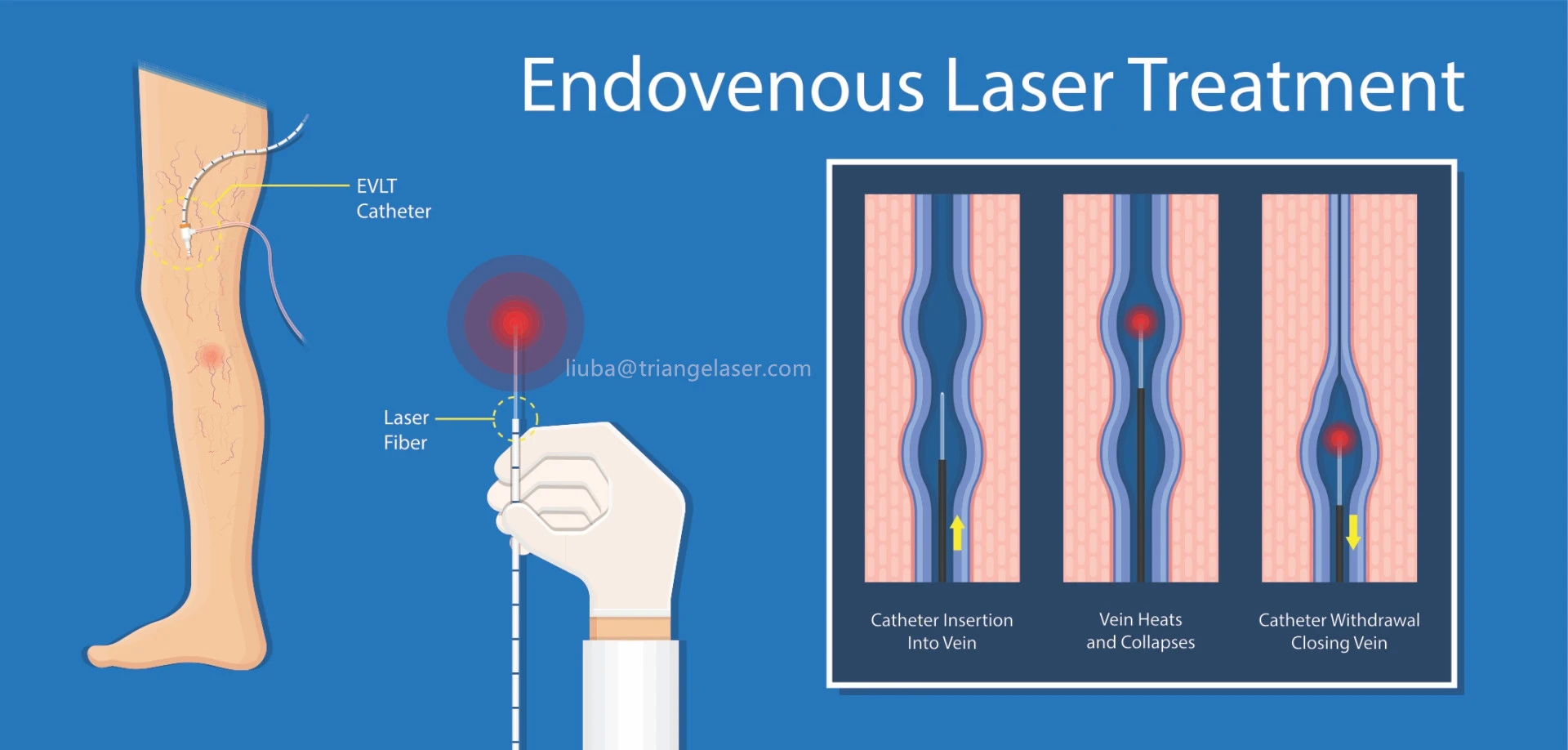

Treatment Principle

Endovenous Laser Ablation Treatment, also known as laser therapy, is a safe, proven procedure that not only treats the symptoms of varicose veins.

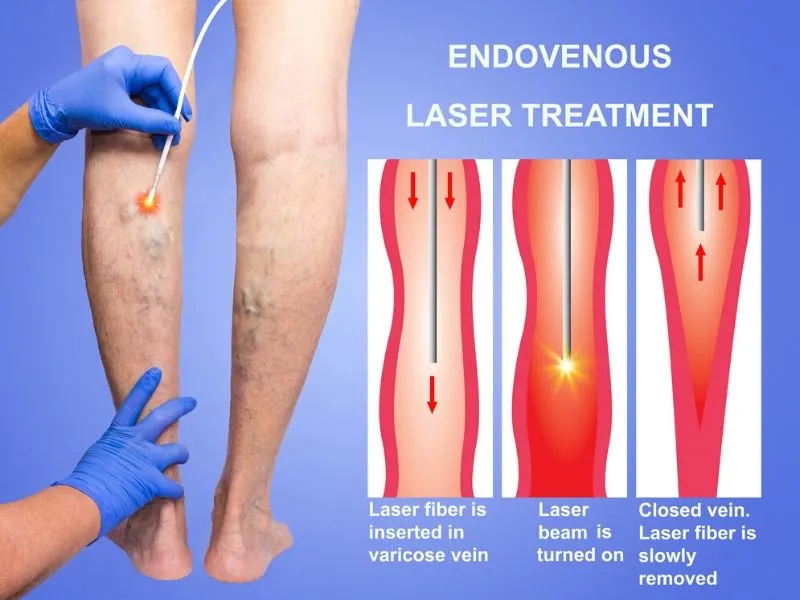

Endovenous means inside the vein, a small amount of local anaesthetic is injected into the skin over the vein and a needle inserted into it. A wire is passed through the needle and up the vein. The needle is removed and a catheter is passed over the wire, up the vein and the wire removed. A laser fiber is passed up the catheter so its tip lies at the highest point to be heated (usually your groin crease).

A large quantity of local anaesthetic solution is then injected around the vein through multiple tiny needle pricks. The laser is then fired up and pulled down the vein over to heat the lining within the vein, damaging it and causing it to collapse, shrink, and eventually disappear.

Before you receive the laser machine, you will receive:

Using Manual, Suggested parameters (All those parameters are offered by our professional doctors who have already got the best treatment results), How to protect the laser fiber, how to sterilize the handle and fiber, and so on.

Also with all handles, fibers detailed install videos and treatment videos.

If you have any questions, please contact us to get more details:

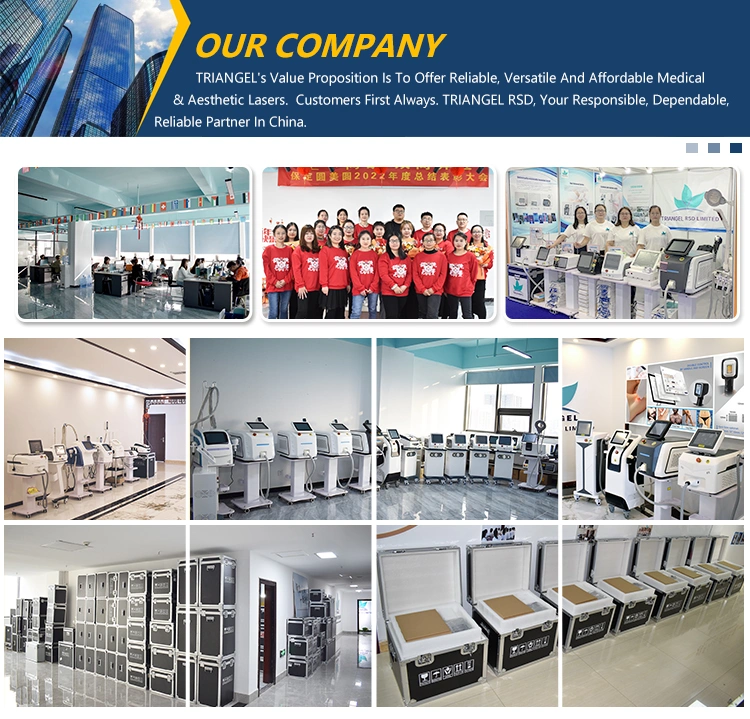

Company Profile

TRIANGEL RSD LIMITED,is one of the specialized manufactures focused on the Aesthetics & Laser equipment in China,established in March 2010.We have our own repair companies & training centers in several countries,like Portugal,Russia,Australia,South Africa...could offer the technical support and clinical training in the fast and efficient way. TRIANGEL got different certificates for clients from all over the world.CE,ISO13485, RoHS;We also take part in exhibitions every year,Cosmoprof Asia(HongKong),DUBAI DERMA,INTERCHARM(Moscow),Expocosmetica(Oporto),AMSCA(South Africa)...

TRIANGEL,hope to be your Responsible,Sincere and Dependable partner in China!

Customer Feedback

FAQ

1.What is the procedure of the EVLT operation?

After your scan your leg will be cleaned before a tiny amount of anaesthetic is applied (using super fine needles).A catherer is inserted into the vein and the Endovenous Laser fibre is inserted.After this a cool anaesthetic is then applied around your vein to protect surrounding tissues.You will then be required to wear goggles before the laser machine is switched on.During the procedure the laser will be pulled back to seal the faulty vein. Rarely will patients experience any discomfort when the laser is being used.

2.Is EVLT procedure painful?

Some patients may experience temporary soreness or some slight swelling, which can be treated effectively with over-the-counter, non-aspirin pain relievers and typically subsides within the first five days. The procedure is minimally invasive and requires no general anesthesia.

3.Is Evlt dangerous?
EVLT is safe and effective,2-4 especially in terms of faster recovery.

4.How long after EVLT will I see results?

Within one week patients may start to notice a difference in the prominence of their varicose veins, but complete results may take weeks to months.
