place of origin:Beijing
brand name:TAZlaser
model number:TR-B1470
Output power:12w
fiber:400um 600um
Working Mode:CW Pulse
Function:evlt
Laser wavelength:1470nm
Pulse width:0.05-1s
Delay:0.05-1s
Warranty:1 Year
OEM:Custom-made
Color:White

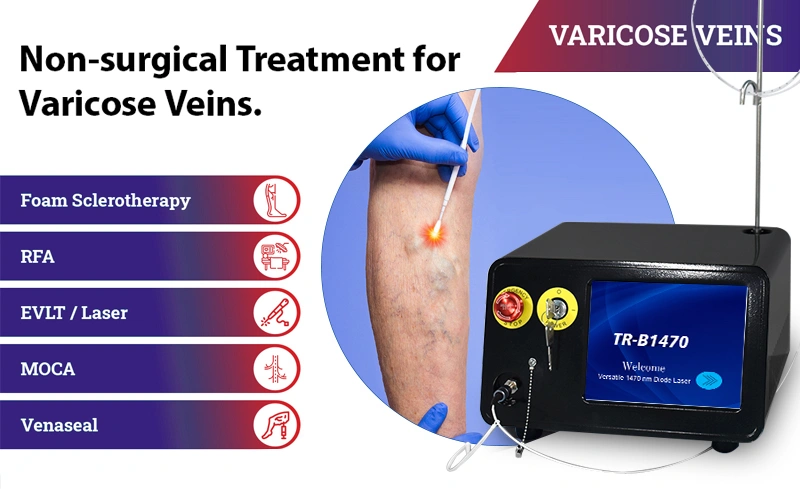

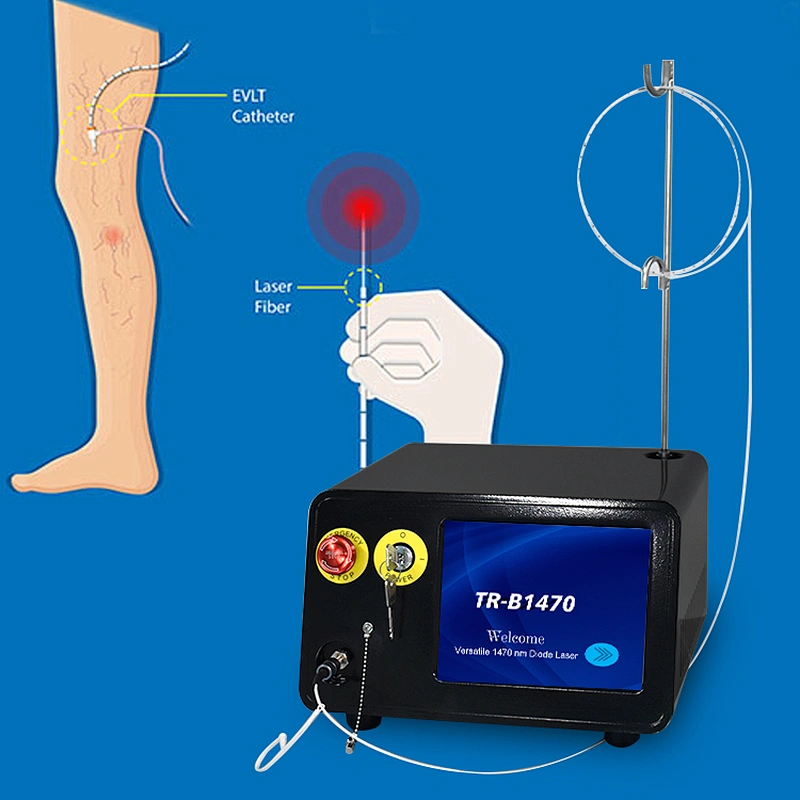

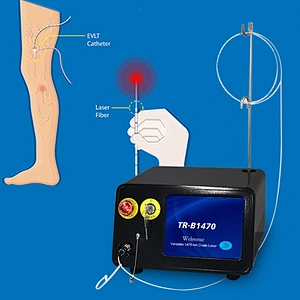

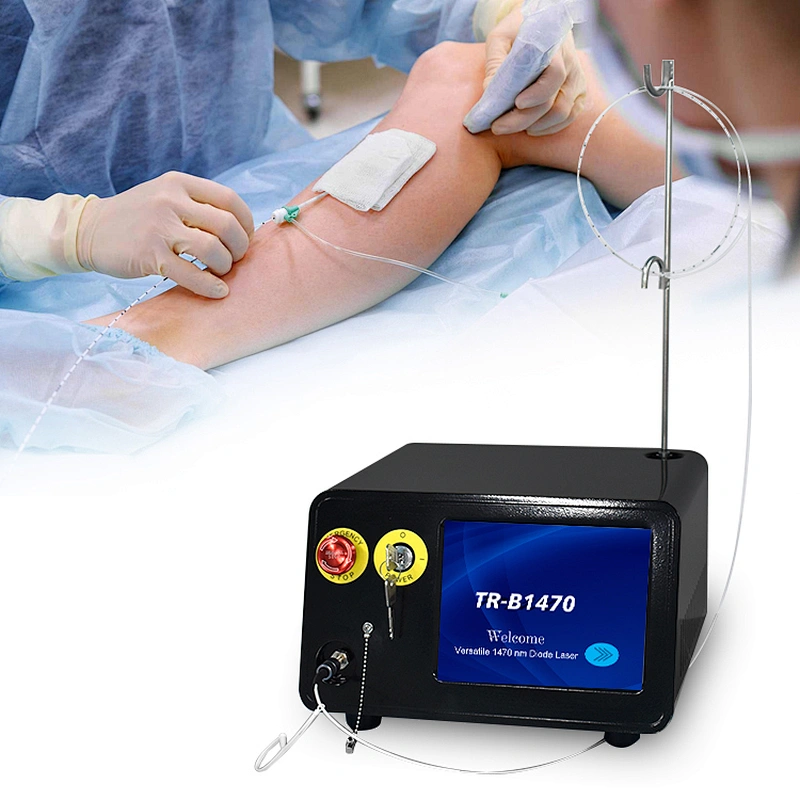

EVLT high quality 1470nm 12W Mini-invasive evlt medical fiber diode laser machine

What is EVLT?
EVLT was pioneered in 2003. It was the first viable alternative to surgery as a treatment for venous ablation. Surgery typically consisted of a combination of stripping, or vein removal, and ligation, literally tying the vein closed. Almost all vein surgery involved multiple excisions and required a prolonged recovery period. EVLT only required one very small incision, and patients are able to walk out of the office on the same day. The rates of thrombosis (blood clots) and infection was significantly lower than with surgery. Now long term data shows that recurrent vein disease is much less likely with endovenous ablation than with any surgical intervention.

Endovenous laser treatment (EVLT) is a procedure that uses laser heat to treat varicose veins. It is a minimally invasive procedure that makes use of catheters, lasers, and ultrasound to treat varicose veins. This procedure is performed most often on veins that are still relatively straight and untwisted.

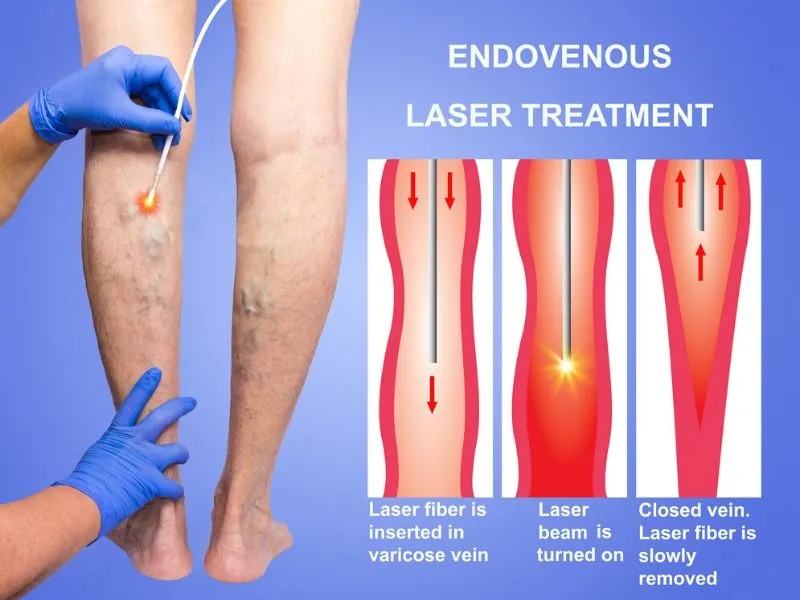

Through a small puncture hole on the skin, a fibre is thread into the varicose vein under ultrasound guidance. Laser energy is released precisely from the fibre to ablate and seal off the diseased vein.

Products Description

Laser type	Diode Laser Gallium-Aluminum-Arsenide GaAlAs
Laser Wavelength	1470nm
Fiber diameter	400um 600 um radial fiber
Output Power	12w
Working modes	CW and Pulse Mode
Pulse	0.01-1s
Delay	0.01-1s
Spot size	20-40mm adjustble
Voltage	100-240V, 50/60HZ
Size	302819cm
Weight	6.3kg

Laser interaction with tissue depends on the wavelength of choice. The Laseev laser comes in 1470nm.

The 1470nm laser with significantly higher absorption in water, provides a superior precision instrument for reduced collateral thermal damage around venous structures.Accordingly, it is highly recommended for endovascular work.

Laser wavelength 1470 is, at least, 40 times better absorbed by water and oxyhemoglobin than 980nm laser, allowing selective destruction of the vein, with less energy and reducing side effects.

As a water-specific laser, the TR1470nm laser targets water as the chromophore to absorb the laser energy. Since the vein
structure is mostly water, it is theorized that the 1470 nm laser wavelength efficiently heats endothelial cells with a low risk of collateral damage, resulting in an optimal vein ablation.

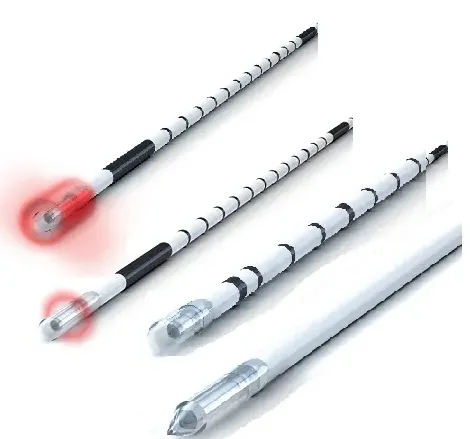

360°Radial Fiber 600um

TRIANGELASER 360 fiber technology provides you with the efficiency of circular emission, ensuring deposition of energy directly on
the vessel wall.
The tip of the fiber is comprised of an extra smooth glass capillary, directly connected to a marked smooth jacket, allowing easy
direct insertion into the vein.The fiber uilizes a simple procedure kit with a short introducer, reducing steps and procedure time.

Key Advantages
* Circular emission technology
* Reduced number of procedural steps
* Very safe and smooth insertion

Radial fiber that emits at 360° affords the ideal endovenous thermal ablation. It is therefore possible to gently and evenly
introduce the laser energy into the lumen of the vein and ensure the closure of the vein based on photothermal destruction (at temperatures between 100 and 120°C).
TRIANGEL RADIAL FIBER is equipped with safety markings for optimal control of the pullback process.

Products Advantages

1.Germany laser generator with more than 3 years lifetime ,max.30w output laser energy;

2.Curative effect: operation under direct vision, the main branch can closed of tortuous vein clumps

3.Patients with mild disease can be treated in the outpatient service.

4.Postoperative secondary infection, less pain, quick recovery.

5.Surgical operation is simple, treatment time is greatly shortened, reduce patient's much pain

6.Beautiful appearance, almost no scar after surgery.

7.Minimally invasive, less bleeding.

Which method is the best for treatment of reticular and spider veins, sclerotherapy or laser?
The optimal method at the present time is sclerotherapy. For the pink and purple spider veins with liquid sclerosant, for the
green reticular veins with foam. Laser can also be used, but it is effective only when “matting” is present. It’s a situation when after performing sclerotherapy some new tiny pink vessels appear like a pink “cloud”. At larger vessels the laser is not as effective as sclerotherapy.

How long do the patients need to wear elastic stockings after vein treatment?
If a varicose veins treatment with laser or radiofrequency ablation accompanied with miniphlebectomies then the period of elastic compression should be 3 weeks. At some cases when bioglue is used it can be shorten to few days or even no compression at all. After sclerotherapy the elastic compression period is 5 days.

May you treat both legs at the same time?
The only restriction that we have is the daily dosage of the drug that we inject. The overdosing can cause serious side effects. This is the reason the treatment is being divide to sessions that can be repeated every 48 hours, in practice twice a week. The total number of sessions needed is strictly individual and depends on the severity of the problem.

Are the results permanent? If not, how long does it last?
The veins that are being sclerosed don’t reappear. However, since venous insufficiency is a chronic disease there is a strong possibility that new veins can reappear at new spots or even at the ones that have been treated previously. The recurrence rate can be minimized with prophylactic measures, such as sport activity, avoiding of long standing, body weight management, use of elastic compression during long period of standing or sitting etc.

Which patients should perform a prophylactic scan of carotid arteries or check up for aneurysm disease?
Patients over 50 years old with smoking history or high cholesterol or family history of atherosclerosis or aneurysm.

Can sclerotherapy take place during pregnancy or breast feeding?
No, pregnancy and lactation are contra indications for sclerotherapy.

Application

During the EVLA procedure, the surgeon uses ultrasound to find the vein to be treated. The veins that can be treated are the main venous trunks of the legs:

Great Saphenous Vein (GSV)

Small Saphenous Vein (SSV)

Their major tributaries such as the Anterior Accessory Saphenous Veins (AASV)

Endovenous occlusion of great saphenous vain and small saphenus vain

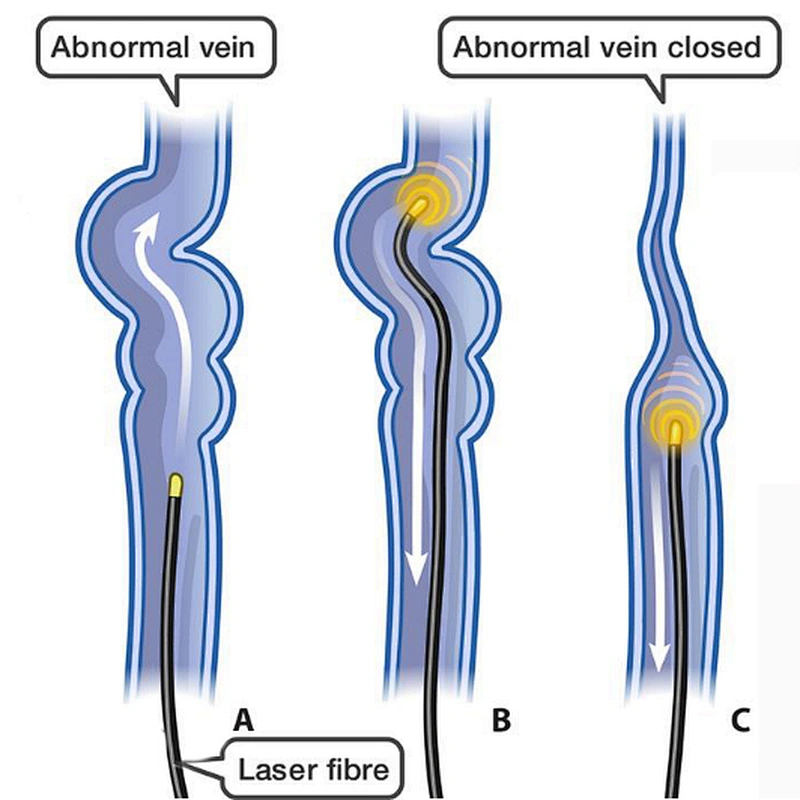

Endovenous laser ablation (EVLA) treats major varicose veins previously treated by stripping surgery. With ultrasound guidance, a laser fibre is placed into the abnormal vein through a tiny incision. The vein is then numbed with local anaesthetic, and the laser activated as the fibre is slowly removed. This produces a reaction in the vein wall along the treated section, resulting in collapse and sclerosis of the vein wall with minimal discomfort.

The published success of EVLA treatment is between 95-98%, with far fewer complications than surgery. With the addition of EVLA to ultrasound guided sclerotherapy, it is expected that varicose vein surgery will be performed much less frequently in the future.

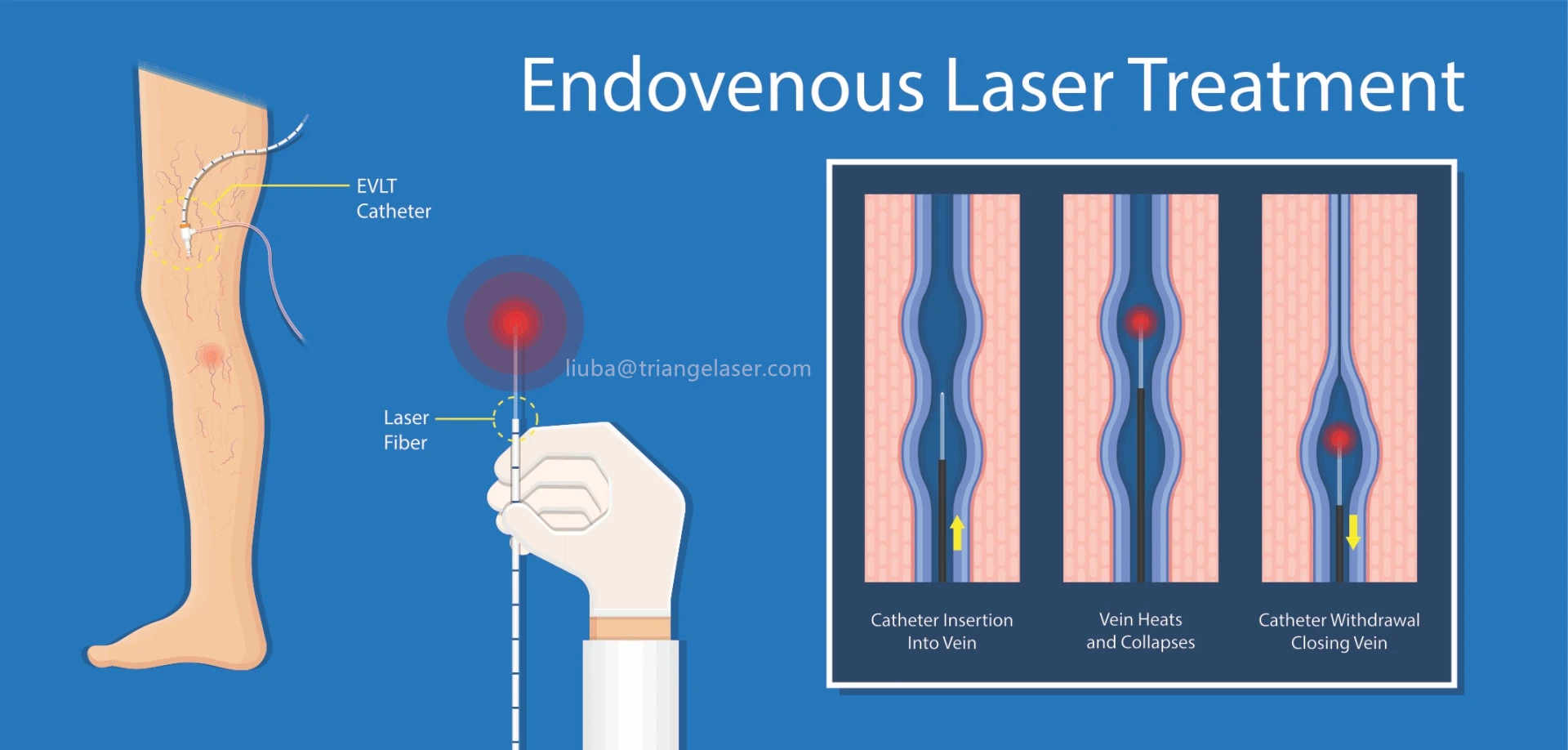

Treatment Principle

Endovenous Laser Ablation Treatment, also known as laser therapy, is a safe, proven procedure that not only treats the symptoms of varicose veins.
Endovenous means inside the vein, a small amount of local anaesthetic is injected into the skin over the vein and a needle inserted into it. A wire is passed through the needle and up the vein. The needle is removed and a catheter is passed over the wire, up the vein and the wire removed. A laser fiber is passed up the catheter so its tip lies at the highest point to be heated (usually your groin crease). A large quantity of local anaesthetic solution is then injected around the vein through multiple tiny needle pricks. The laser is then fired up and pulled down the vein over to heat the lining within the vein, damaging it and causing it to collapse, shrink, and eventually disappear.

Before you receive the laser machine, you will receive:

Using Manual, Suggested parameters (All those parameters are offered by our professional doctors who have already got the best treatment results), How to protect the laser fiber, how to sterilize the handle and fiber, and so on.

Also with all handles, fibers detailed install videos and treatment videos.

If you have any questions, please contact us to get more details:

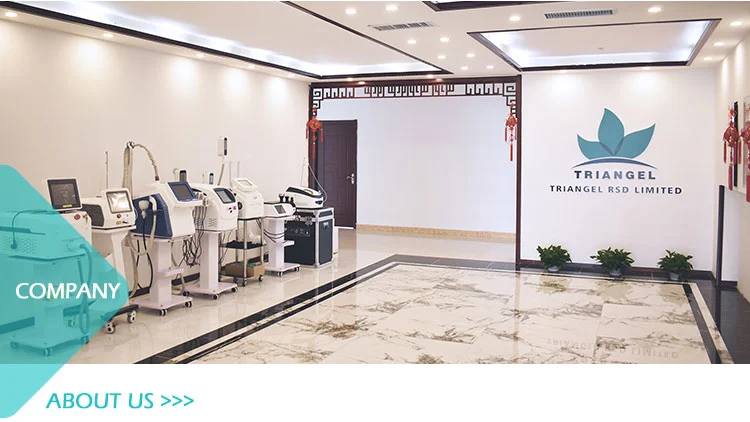

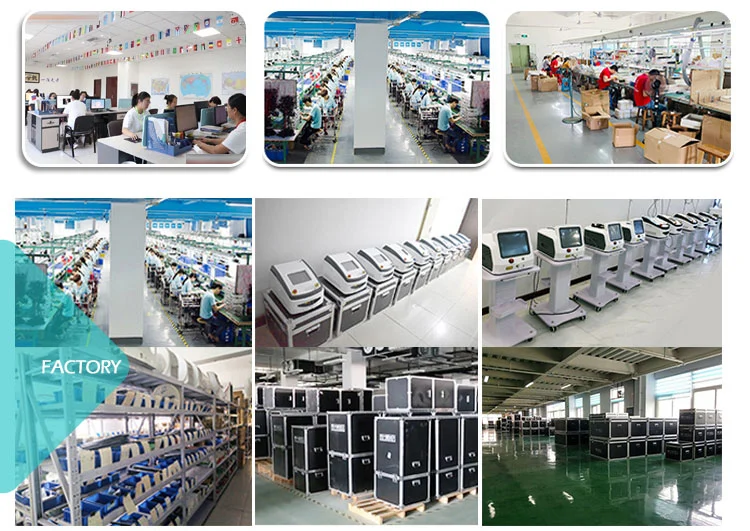

Company Profile

TRIANGEL RSD LIMITED,is one of the specialized manufactures focused on the Aesthetics & Laser equipment in China,established in March 2010.We have our own repair companies & training centers in several countries,like Portugal,Russia,Australia,South Africa...could offer the technical support and clinical training in the fast and efficient way. TRIANGEL got different certificates for clients from all over the world.CE,ISO13485, RoHS;We also take part in exhibitions every year,Cosmoprof Asia(HongKong),DUBAI DERMA,INTERCHARM(Moscow),Expocosmetica(Oporto),AMSCA(South Africa)...

TRIANGEL,hope to be your Responsible,Sincere and Dependable partner in China!

Customer Feedback

FAQ

Is EVLT procedure painful?

Some patients may experience temporary soreness or some slight swelling, which can be treated effectively with over-the-counter, non-aspirin pain relievers and typically subsides within the first five days. The procedure is
minimally invasive and requires no general anesthesia.

Is Evlt dangerous?

EVLT is safe and effective,2-4 especially in terms of faster recovery.

How long after EVLT will I see results?

Within one week patients may start to notice a difference in the prominence of their varicose veins, but complete results may take weeks to months.
